1116737
1116737
- Available: 90
- Manufacturer: Phoenix Contact
- Part Number: 1116737

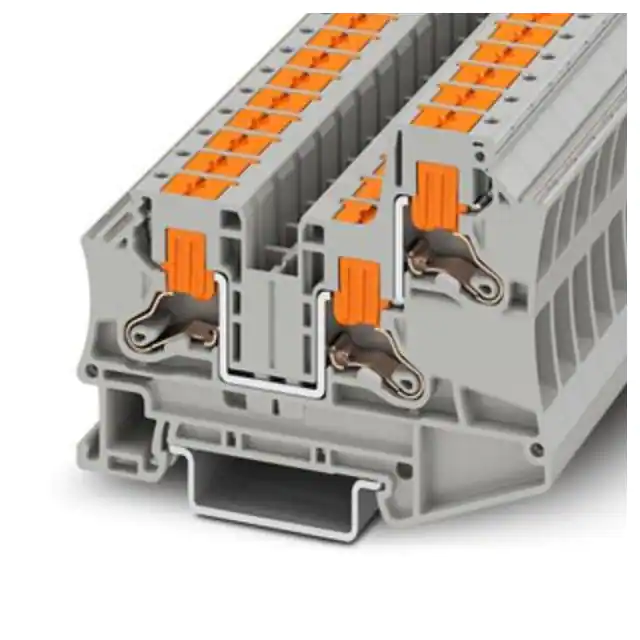

- Detailed Description: Terminal Block Connector 3 Position Feed Through Gray 8-20 AWG
- Category: Connectors, Interconnects | Terminal Blocks - Din Rail, Channel
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$7.2840
10+
$6.8470
100+
$6.4828
1000+
$6.1186
10000+
$5.7544
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Series | CLIPLINE PTV |
| Package | Bulk |
| Standard Package | 50 |
| Product Status | Active |
| Type | Feed Through |
| Disconnect Type | - |
| Number of Positions | 3 |
| Number of Levels | 1 |
| Terminal - Width | 8.2mm |
| Termination Style | Push In, Spring |
| Current - IEC | 41 A |
| Voltage - IEC | 1000V |
| Current - UL | 40 A |
| Voltage - UL | 600V |
| Wire Gauge or Range - AWG | 8-20 AWG |
| Wire Gauge or Range - mm² | 0.5-10mm² |
| Features | - |
| Color | Gray |
| Fuse Type | - |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Stripping Length | 10mm ~ 12mm |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
