1329513
1329513
- Available: 50
- Manufacturer: Phoenix Contact
- Part Number: 1329513

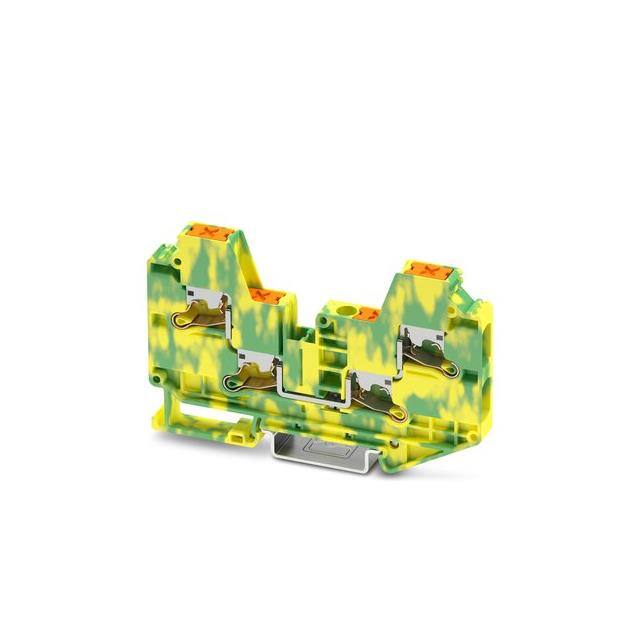

- Detailed Description: Terminal Block Connector 4 Position Ground, Earth Green, Yellow 8-16 AWG
- Category: Connectors, Interconnects | Terminal Blocks - Din Rail, Channel
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$24.9240
10+
$23.4286
100+
$22.1824
1000+
$20.9362
10000+
$19.6900
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Series | XTV |
| Package | Bulk |
| Standard Package | 50 |
| Product Status | Active |
| Type | Ground, Earth |
| Disconnect Type | - |
| Number of Positions | 4 |
| Number of Levels | 1 |
| Terminal - Width | 8.2mm |
| Termination Style | Push In, Spring |
| Voltage - IEC | - |
| Voltage - UL | - |
| Wire Gauge or Range - AWG | 8-16 AWG |
| Wire Gauge or Range - mm² | 1.5-10mm² |
| Features | Cover |
| Color | Green, Yellow |
| Fuse Type | - |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Stripping Length | 10mm ~ 12mm |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | |
| HTSUS |
