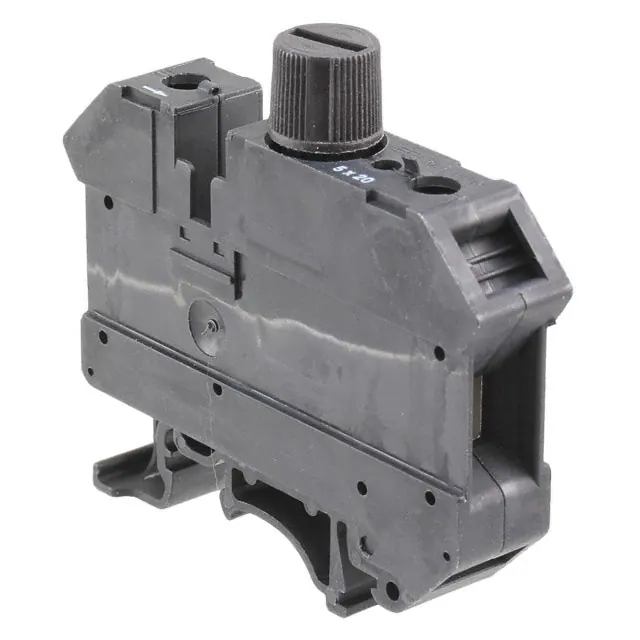

3005109
3005109
- Available: 0
- Manufacturer: Phoenix Contact
- Part Number: 3005109
- Detailed Description: Terminal Block Connector 2 Position Disconnect Black 6-24 AWG
- Category: Connectors, Interconnects | Terminal Blocks - Din Rail, Channel
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$36.7440
10+
$34.5394
100+
$32.7022
1000+
$30.8650
10000+
$29.0278
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Series | CLIPLINE UK |
| Package | Bulk |
| Standard Package | 1 |
| Product Status | Active |
| Type | Disconnect |
| Disconnect Type | Fuse, Screw Cap |
| Number of Positions | 2 |
| Number of Levels | 1 |
| Terminal - Width | 12.0mm |
| Termination Style | Screw |
| Current - IEC | 10 A |
| Voltage - IEC | - |
| Current - UL | 20 A |
| Voltage - UL | 300V |
| Wire Gauge or Range - AWG | 6-24 AWG |
| Wire Gauge or Range - mm² | 0.5-16mm² |
| Features | - |
| Color | Black |
| Fuse Type | 5mm x 20mm |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-2 |
| Stripping Length | 11mm |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
