3031364
3031364
- Available: 6971
- Manufacturer: Phoenix Contact
- Part Number: 3031364

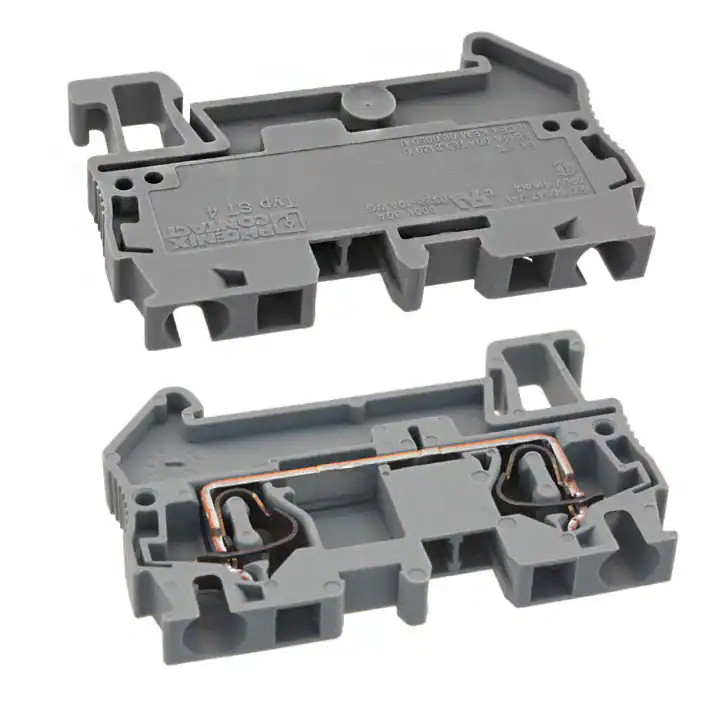

- Detailed Description: Terminal Block Connector 2 Position Feed Through Gray 10-28 AWG
- Category: Connectors, Interconnects | Terminal Blocks - Din Rail, Channel
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.5280
10+
$3.3163
100+
$3.1399
1000+
$2.9635
10000+
$2.7871
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Series | CLIPLINE ST |
| Package | Box |
| Standard Package | 50 |
| Product Status | Active |
| Type | Feed Through |
| Disconnect Type | - |
| Number of Positions | 2 |
| Number of Levels | 1 |
| Terminal - Width | 6.2mm |
| Termination Style | Push In, Spring |
| Current - IEC | 32 A |
| Voltage - IEC | 800V |
| Current - UL | 30 A |
| Voltage - UL | 600V |
| Wire Gauge or Range - AWG | 10-28 AWG |
| Wire Gauge or Range - mm² | 0.08-6mm² |
| Features | - |
| Color | Gray |
| Fuse Type | - |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Stripping Length | 10mm |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.69.8000 |
