324169
324169
- Available: 0
- Manufacturer: TE Connectivity AMP Connectors
- Part Number: 324169

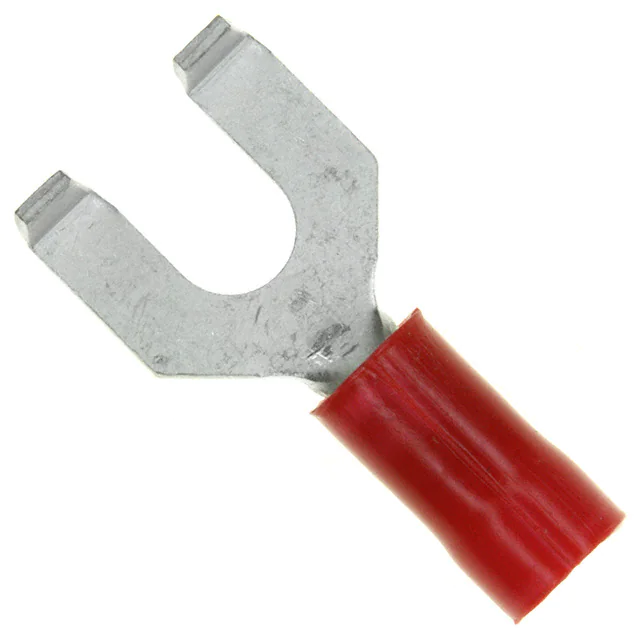

- Detailed Description: Red 8 Stud Spade Terminal Connector Crimp 16-22 AWG
- Category: Connectors, Interconnects | Terminals - Spade Connectors
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.5760
10+
$0.5414
100+
$0.5126
1000+
$0.4838
10000+
$0.4550
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | TE Connectivity AMP Connectors |
|---|---|
| Series | Plasti-Grip |
| Package | Bulk |
| Standard Package | 1000 |
| Product Status | Active |
| Terminal Type | Flanged |
| Stud/Tab Size | 8 Stud |
| Width - Outer Edges | 0.416" (10.57mm) |
| Length - Overall | 0.873" (22.17mm) |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Crimp |
| Wire Gauge | 16-22 AWG |
| Insulation | Insulated |
| Features | Serrated Termination |
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation Diameter | 0.105" ~ 0.140" (2.67mm ~ 3.56mm) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Length - Ring Center to Termination | 0.250" (6.35mm) |
| Length - Termination | 0.416" (10.57mm) |
| Tongue Inside Opening | 0.171" (4.34mm) |
| Base Product Number | 3241 |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
