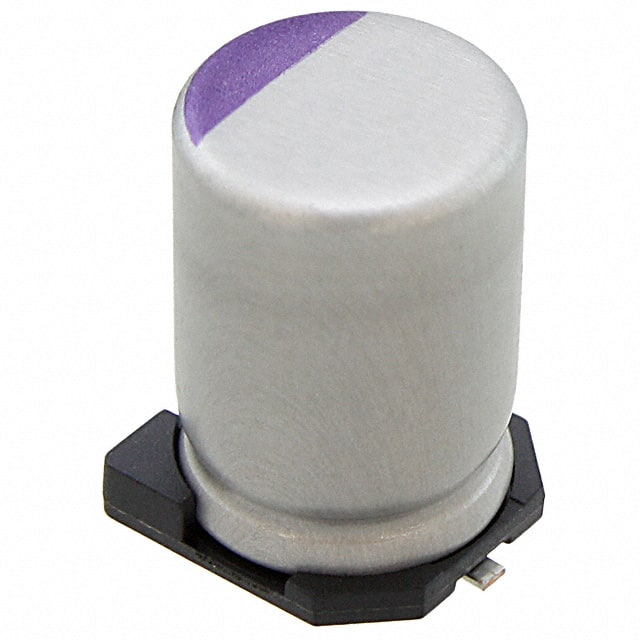

50SVPF39M
50SVPF39M
- Available: 800
- Manufacturer: Panasonic Electronic Components
- Part Number: 50SVPF39M
- Detailed Description: 39 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 25mOhm 5000 Hrs @ 105°C
- Category: Capacitors | Aluminum - Polymer Capacitors
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.6040
10+
$2.4478
100+
$2.3176
1000+
$2.1874
10000+
$2.0572
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Panasonic Electronic Components |
|---|---|
| Series | OS-CON™, SVPF |
| Package | - |
| Standard Package | 400 |
| Product Status | Active |
| Type | Polymer |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 190 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.8 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.315 Dia (8.00mm) |
| Height - Seated (Max) | 0.472 (12.00mm) |
| Surface Mount Land Size | 0.327 L x 0.327 W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial | Can - SMD |
| Base Product Number | 50SVPF |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8532.22.0020 |
