74ACT273B
74ACT273B
- Available: 0
- Manufacturer: STMicroelectronics
- Part Number: 74ACT273B

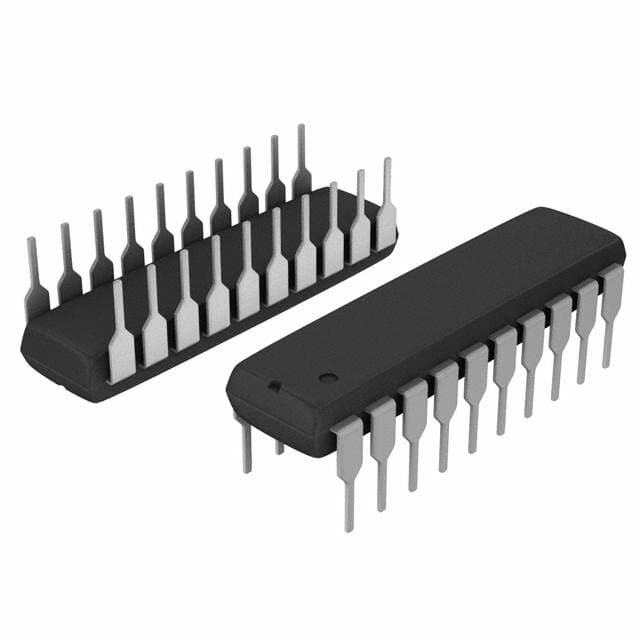

- Detailed Description: Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP (0.300", 7.62mm)
- Category: Integrated Circuits (ICs) | Logic - Flip Flops
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | 74ACT |
| Package | - |
| Standard Package | 20 |
| Product Status | Obsolete |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 190 MHz |
| Max Propagation Delay @ V, Max CL | 8.5ns @ 5V | 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 24mA | 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 4 pF |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-DIP |
| Package / Case | 20-DIP (0.300" | 7.62mm) |
| Base Product Number | 74ACT273 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
