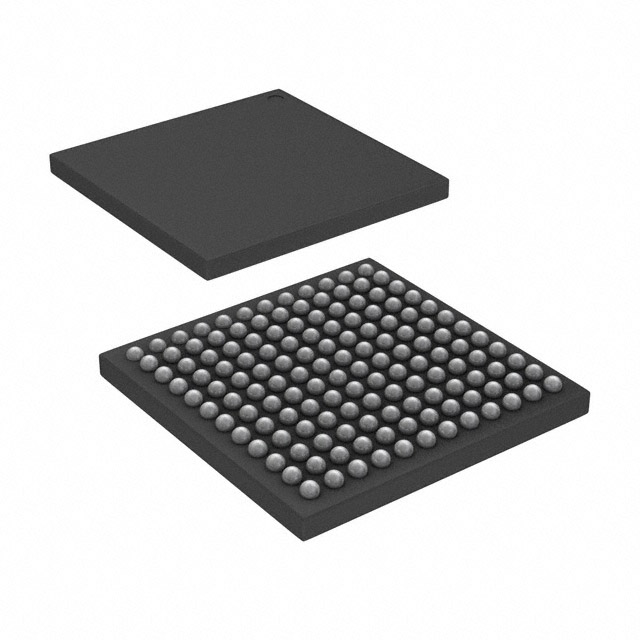

AD9364BBCZREEL
AD9364BBCZREEL
- Available: 1500
- Manufacturer: Analog Devices Inc.
- Part Number: AD9364BBCZREEL
- Detailed Description: IC RF TxRx Only Cellular LTE 70MHz ~ 6GHz 144-LFBGA, CSPBGA
- Category: RF/IF and RFID | RF Transceiver ICs
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$249.6000
10+
$234.6240
100+
$222.1440
1000+
$209.6640
10000+
$197.1840
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Analog Devices Inc. |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 1500 |
| Product Status | Active |
| Type | TxRx Only |
| RF Family/Standard | Cellular |
| Protocol | LTE |
| Modulation | - |
| Frequency | 70MHz ~ 6GHz |
| Data Rate (Max) | - |
| Power - Output | 8dBm |
| Sensitivity | - |
| Memory Size | - |
| Serial Interfaces | SPI |
| Voltage - Supply | 1.3V |
| Current - Receiving | 175mA ~ 275mA |
| Current - Transmitting | 160mA ~ 490mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 144-LFBGA, CSPBGA |
| Supplier Device Package | 144-CSPBGA (10x10) |
| Base Product Number | AD9364 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
