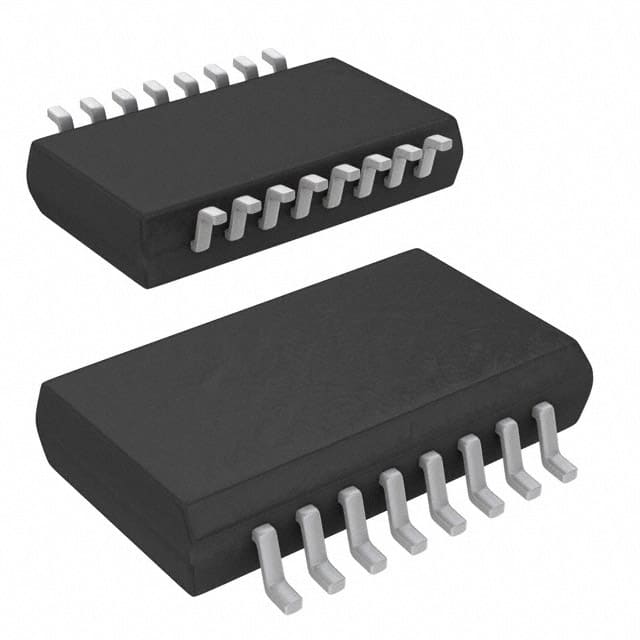

ADCMP396ARZ
ADCMP396ARZ
- Available: 144
- Manufacturer: Analog Devices Inc.
- Part Number: ADCMP396ARZ
- Detailed Description: Comparator General Purpose Open Drain 16-SOIC
- Category: Integrated Circuits (ICs) | Linear - Comparators
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$4.3200
10+
$4.0608
100+
$3.8448
1000+
$3.6288
10000+
$3.4128
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Analog Devices Inc. |
|---|---|
| Series | - |
| Package | Tube |
| Standard Package | 48 |
| Product Status | Active |
| Type | General Purpose |
| Number of Elements | 4 |
| Output Type | Open Drain |
| Voltage - Supply, Single/Dual (±) | 2.3V ~ 5.5V |
| Voltage - Input Offset (Max) | 2.5mV @ 5V |
| Current - Input Bias (Max) | 0.03µA |
| Current - Output (Typ) | - |
| Current - Quiescent (Max) | 59.4μA |
| CMRR, PSRR (Typ) | 74dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | - |
| Hysteresis | 4mV |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ADCMP396 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
