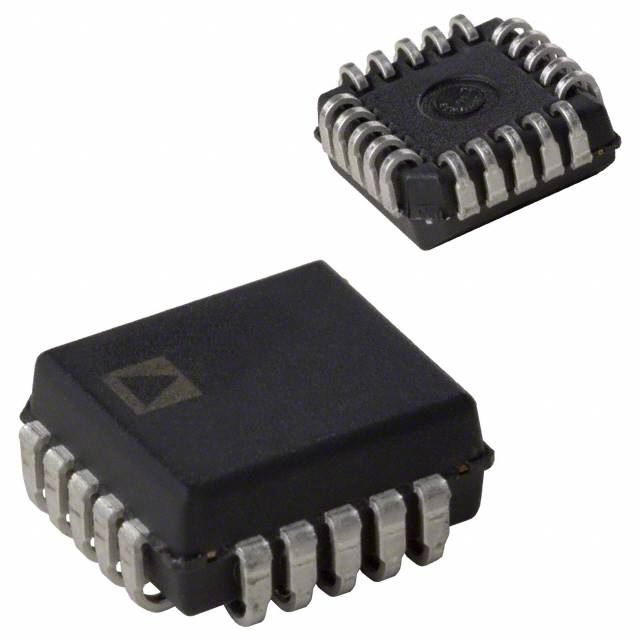

ADCMP565BPZ
ADCMP565BPZ
- Available: 147
- Manufacturer: Analog Devices Inc.
- Part Number: ADCMP565BPZ
- Detailed Description: Comparator with Latch Complementary, Differential, ECL, Open-Emitter 20-PLCC (9x9)
- Category: Integrated Circuits (ICs) | Linear - Comparators
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$19.4760
10+
$18.3074
100+
$17.3336
1000+
$16.3598
10000+
$15.3860
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Analog Devices Inc. |
|---|---|
| Series | - |
| Package | Tube |
| Standard Package | 49 |
| Product Status | Active |
| Type | with Latch |
| Number of Elements | 2 |
| Output Type | Complementary, Differential, ECL, Open-Emitter |
| Voltage - Supply, Single/Dual (±) | ±4.75V ~ 5.25V |
| Voltage - Input Offset (Max) | 6mV @ 5V |
| Current - Input Bias (Max) | 40μA @ 5V |
| Current - Output (Typ) | 30mA |
| Current - Quiescent (Max) | 18mA, 80mA |
| CMRR, PSRR (Typ) | 69dB CMRR |
| Propagation Delay (Max) | 0.375ns |
| Hysteresis | ±1mV |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-PLCC (9x9) |
| Base Product Number | ADCMP565 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
