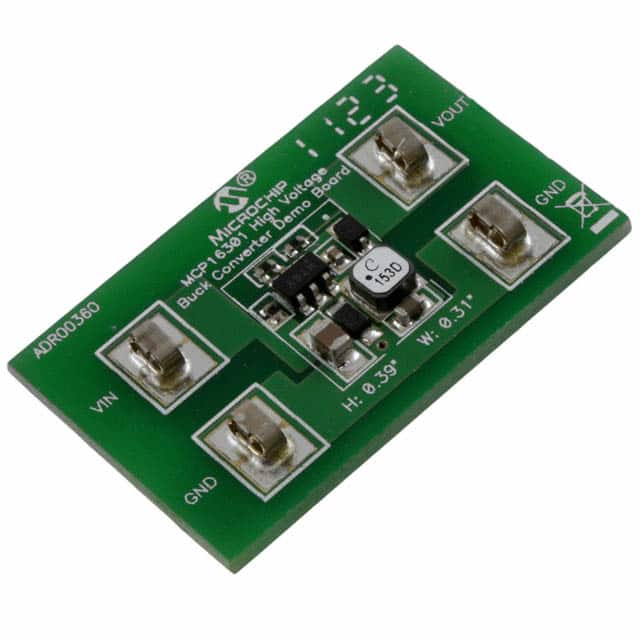

ADM00360
ADM00360
- Available: 0
- Manufacturer: Microchip Technology
- Part Number: ADM00360
- Detailed Description: MCP16301 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
- Category: Development Boards, Kits, Programmers | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$40.3800
10+
$37.9572
100+
$35.9382
1000+
$33.9192
10000+
$31.9002
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Microchip Technology |
|---|---|
| Series | - |
| Package | Box |
| Standard Package | 1 |
| Product Status | Active |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated |
| Voltage - Output | 3.3V |
| Current - Output | 300mA |
| Voltage - Input | 4V ~ 26V |
| Regulator Topology | Buck |
| Frequency - Switching | 500kHz |
| Board Type | Fully Populated |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MCP16301 |
| Base Product Number | ADM00360 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8473.30.1180 |
