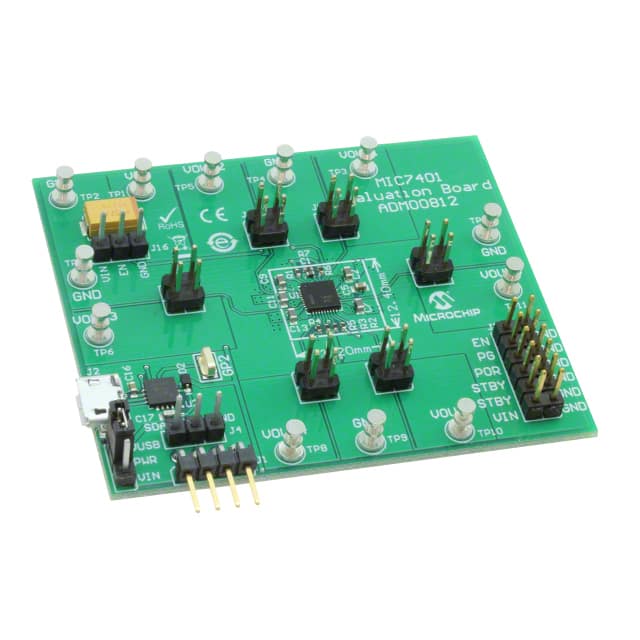

ADM00812
ADM00812
- Available: 0
- Manufacturer: Microchip Technology
- Part Number: ADM00812
- Detailed Description: MIC7401 - DC/DC, Step Up or Down 6, Non-Isolated Outputs Evaluation Board
- Category: Development Boards, Kits, Programmers | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$111.7320
10+
$105.0281
100+
$99.4415
1000+
$93.8549
10000+
$88.2683
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Microchip Technology |
|---|---|
| Series | - |
| Package | Bulk |
| Standard Package | 1 |
| Product Status | Active |
| Main Purpose | DC/DC, Step Up or Down |
| Outputs and Type | 6, Non-Isolated |
| Voltage - Output | 1.05V, 1.1V, 1.25V, 1.8V, 1.8V or 12V |
| Current - Output | 3A, 1A, 800mA, 500mA, 500mA or 200mA |
| Voltage - Input | 2.4V ~ 5.5V |
| Regulator Topology | Buck-Boost |
| Frequency - Switching | 2MHz |
| Board Type | Fully Populated |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MIC7401 |
| Base Product Number | ADM00812 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
