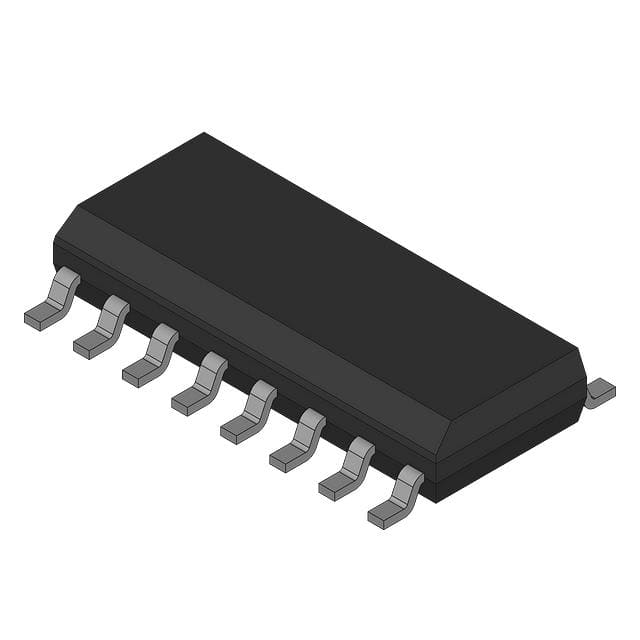

ADP3161JR
ADP3161JR
- Available: 747
- Manufacturer: Analog Devices Inc.
- Part Number: ADP3161JR
- Detailed Description: Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-SOIC
- Category: Integrated Circuits (ICs) | PMIC - DC DC Switching Controllers
- RoHS Status： RoHS non-compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.3320
10+
$1.2521
100+
$1.1855
1000+
$1.1189
10000+
$1.0523
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Analog Devices Inc. |
|---|---|
| Series | - |
| Package | Bulk |
| Standard Package | 1 |
| Product Status | Active |
| Output Type | PWM |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 5V, 12V |
| Frequency - Switching | Up to 2MHz |
| Duty Cycle (Max) | 50% |
| Synchronous Rectifier | Yes |
| Clock Sync | - |
| Serial Interfaces | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
Environmental & Export
| RoHS Status | RoHS non-compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
