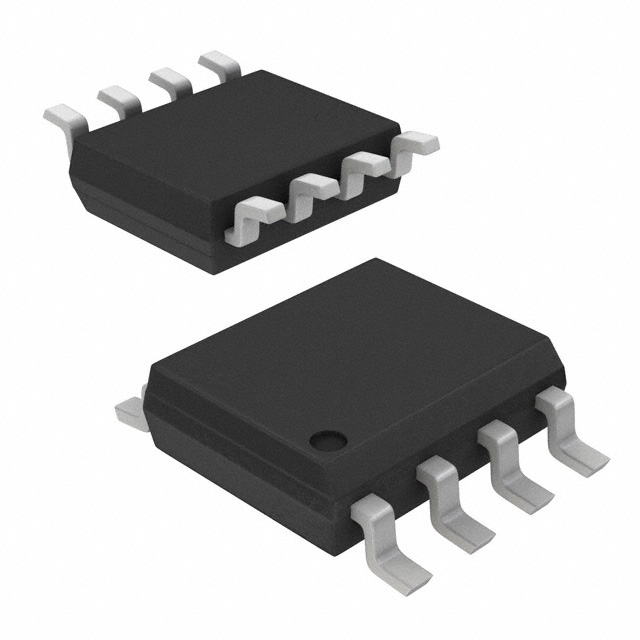

AL1663RS-13
AL1663RS-13
- Available: 12000
- Manufacturer: Diodes Incorporated
- Part Number: AL1663RS-13
- Detailed Description: LED Driver IC 1 Output AC DC Offline Switcher Flyback, Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 8-SO
- Category: Integrated Circuits (ICs) | PMIC - LED Drivers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.3098
10+
$0.2912
100+
$0.2758
1000+
$0.2603
10000+
$0.2448
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Diodes Incorporated |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 4000 |
| Product Status | Active |
| Type | AC DC Offline Switcher |
| Topology | Flyback, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | No |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 7V |
| Voltage - Supply (Max) | 30V |
| Voltage - Output | 20V |
| Current - Output / Channel | - |
| Frequency | 150kHz |
| Dimming | Analog, PWM |
| Applications | Backlight, Lighting |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | AL1663 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
