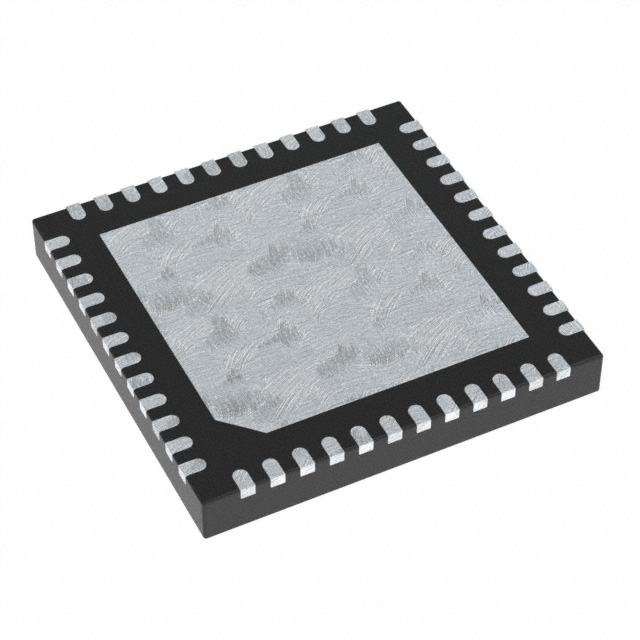

AT86RF215-ZU
AT86RF215-ZU
- Available: 2080
- Manufacturer: Microchip Technology
- Part Number: AT86RF215-ZU
- Detailed Description: IC RF TxRx Only 802.15.4, General ISM < 1GHz - 389.5MHz ~ 510MHz, 779MHz ~ 1.02GHz, 2.4GHz 48-VFQFN Exposed Pad
- Category: RF/IF and RFID | RF Transceiver ICs
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$9.4560
10+
$8.8886
100+
$8.4158
1000+
$7.9430
10000+
$7.4702
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Microchip Technology |
|---|---|
| Series | - |
| Package | Tray |
| Standard Package | 416 |
| Product Status | Active |
| Type | TxRx Only |
| RF Family/Standard | 802.15.4 | General ISM < 1GHz |
| Protocol | - |
| Modulation | FSK | OFDM | O-QPSK |
| Frequency | 389.5MHz ~ 510MHz | 779MHz ~ 1.02GHz | 2.4GHz |
| Data Rate (Max) | 2.4Mbps |
| Power - Output | 16dBm |
| Sensitivity | -123dBm |
| Memory Size | - |
| Serial Interfaces | SPI |
| Voltage - Supply | 1.8V ~ 3.6V |
| Current - Receiving | 5mA ~ 33mA |
| Current - Transmitting | 62mA ~ 64mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) |
| Base Product Number | AT86RF215 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
