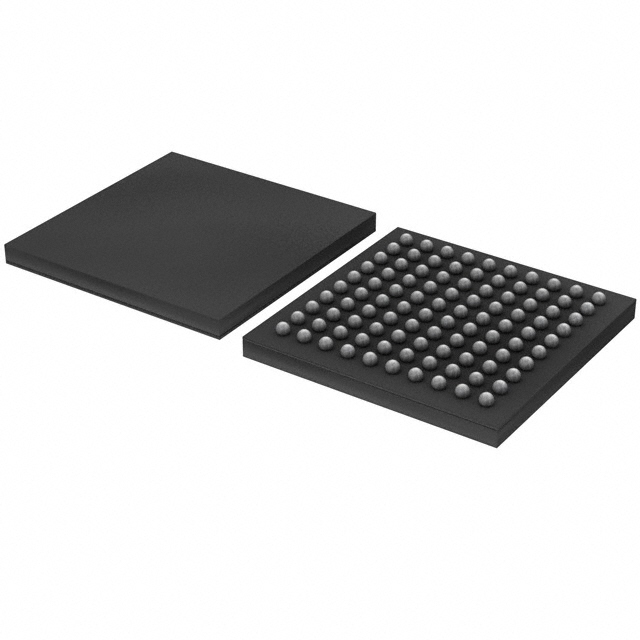

ATMEGA256RZBV-8CU
ATMEGA256RZBV-8CU
- Available: 173
- Manufacturer: Microchip Technology
- Part Number: ATMEGA256RZBV-8CU
- Detailed Description: IC RF TxRx + MCU 802.15.4 6LoWPAN, Zigbee® 2.4GHz 100-TFBGA
- Category: RF/IF and RFID | RF Transceiver ICs
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$17.4960
10+
$16.4462
100+
$15.5714
1000+
$14.6966
10000+
$13.8218
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Microchip Technology |
|---|---|
| Series | - |
| Package | Tray |
| Standard Package | 1 |
| Product Status | Active |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4 |
| Protocol | 6LoWPAN, Zigbee® |
| Modulation | O-QPSK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 250kbps |
| Power - Output | 3dBm |
| Sensitivity | -101dBm |
| Memory Size | 256kB Flash, 4kB EEPROM, 8kB RAM |
| Serial Interfaces | I²C, JTAG, SPI, USART |
| GPIO | 86 |
| Voltage - Supply | 1.8V ~ 3.6V |
| Current - Receiving | 15.5mA |
| Current - Transmitting | 9.5mA ~ 16.5mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 100-TFBGA |
| Supplier Device Package | 100-CBGA (9x9) |
| Base Product Number | ATMEGA256 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991G |
| HTSUS | 8542.31.0001 |
