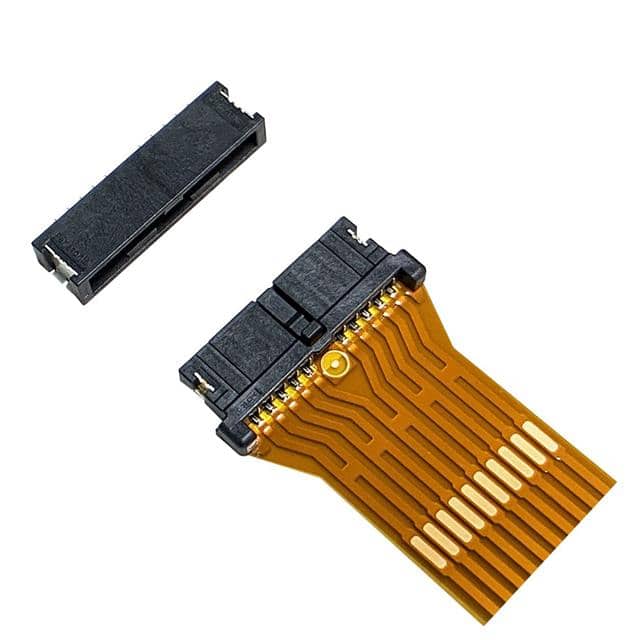

AYC1F0610
AYC1F0610
- Available: 500
- Manufacturer: Panasonic Electric Works
- Part Number: AYC1F0610
- Detailed Description: 6 Position FPC Connector Contacts, Top and Bottom 0.087" (2.20mm) Surface Mount, Right Angle
- Category: Connectors, Interconnects | FFC, FPC Connector Assemblies
- RoHS Status： ROHS3 Compliant
Reference Price (USD)
1+
$3.8280
10+
$3.5983
100+
$3.4069
1000+
$3.2155
10000+
$3.0241
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Panasonic Electric Works |
|---|---|
| Series | CF1 |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 800 |
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top and Bottom |
| Number of Positions | 6 |
| Pitch | 0.087 (2.20mm) |
| Termination | Solder |
| FFC, FCB Thickness | - |
| Height Above Board | 0.232 (5.90mm) |
| Locking Feature | - |
| Cable End Type | - |
| Contact Material | Copper Alloy |
| Contact Finish | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | - |
| Features | Solder Retention |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 2A per Contact |
| Contact Finish Thickness | - |
| Housing Color | Black |
| Actuator Color | - |
| Mating Cycles | 10 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | |
| HTSUS |
