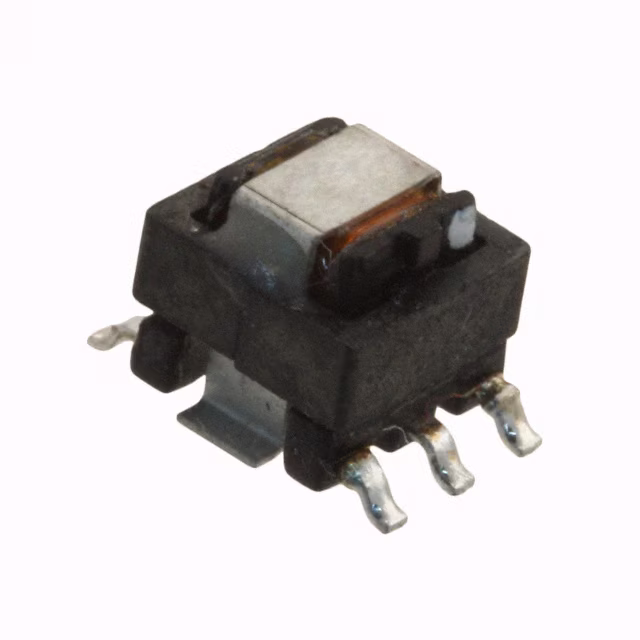

B82801B0205A100
B82801B0205A100
- Available: 2700
- Manufacturer: EPCOS - TDK Electronics
- Part Number: B82801B0205A100
- Detailed Description: 1:100 Current Sense Transformer 50kHz ~ 1MHz 0.8mOhm Primary, 5.5Ohm Secondary 2 mH Surface Mount
- Category: Transformers | Current Sense Transformers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.3600
10+
$3.1584
100+
$2.9904
1000+
$2.8224
10000+
$2.6544
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | EPCOS - TDK Electronics |
|---|---|
| Series | B82801B |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 900 |
| Product Status | Active |
| Frequency Range | 50kHz ~ 1MHz |
| Type | Invasive |
| Inductance | 2 mH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:100 |
| Current Ratio | - |
| DC Resistance (DCR) | 0.8mOhm Primary, 5.5Ohm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.280" L x 0.320" W (7.11mm x 8.13mm) |
| Height - Seated (Max) | 0.200" (5.08mm) |
| Termination Style | Gull Wing |
| Weight | 0.014 oz (0.4 g) |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.2000 |
