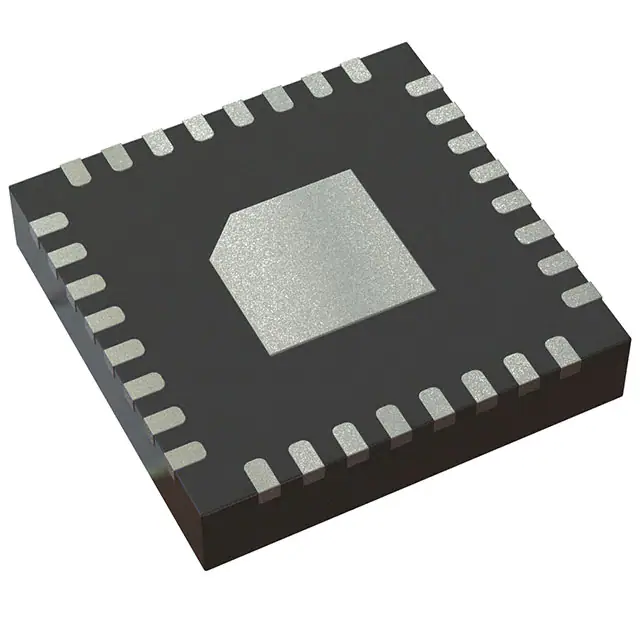

CC2543RHMT
CC2543RHMT
- Available: 6
- Manufacturer: Texas Instruments
- Part Number: CC2543RHMT
- Detailed Description: IC RF TxRx + MCU General ISM > 1GHz 2.4GHz 32-VFQFN Exposed Pad
- Category: RF/IF and RFID | RF Transceiver ICs
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$4.1040
10+
$3.8578
100+
$3.6526
1000+
$3.4474
10000+
$3.2422
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 250 |
| Product Status | Obsolete |
| Type | TxRx + MCU |
| RF Family/Standard | General ISM > 1GHz |
| Protocol | - |
| Modulation | GFSK, MSK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 5dBm |
| Sensitivity | -98dBm |
| Memory Size | 32kB Flash, 1kB SRAM |
| Serial Interfaces | I²C, SPI, USART |
| GPIO | 16 |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Receiving | 21.2mA |
| Current - Transmitting | 26mA ~ 29.4mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| Base Product Number | CC2543 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A002A1 TI |
| HTSUS | 8542.39.0001 |
