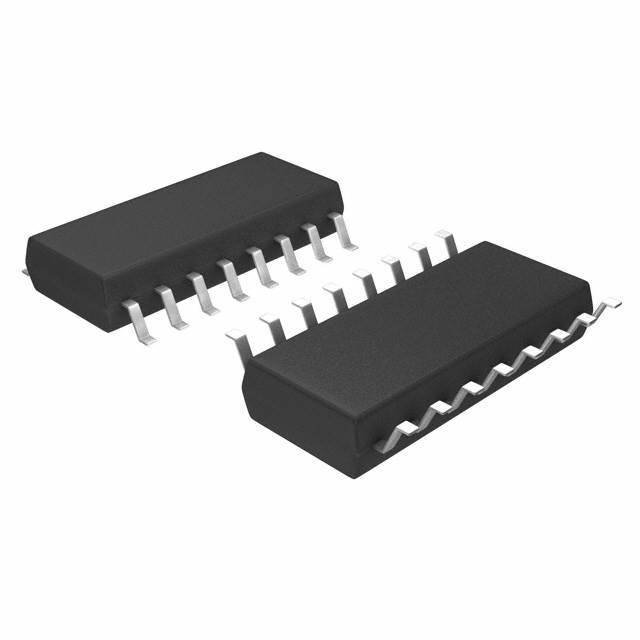

CD4572UBNSR
CD4572UBNSR
- Available: 6000
- Manufacturer: Texas Instruments
- Part Number: CD4572UBNSR
- Detailed Description: NOR/NAND/INVERT Gate Configurable 6 Circuit 8 Input (1, 1, 2, 2, 1, 1) Input 16-SO
- Category: Integrated Circuits (ICs) | Logic - Gates and Inverters - Multi-Function, Configurable
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.9630
10+
$0.9052
100+
$0.8571
1000+
$0.8089
10000+
$0.7608
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | 4000B |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 2000 |
| Product Status | Active |
| Logic Type | NOR/NAND/INVERT Gate |
| Number of Circuits | 6 |
| Number of Inputs | 8 Input (1, 1, 2, 2, 1, 1) |
| Schmitt Trigger Input | No |
| Output Type | Differential |
| Current - Output High, Low | 6.8mA, 6.8mA |
| Voltage - Supply | 3V ~ 18V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.209, 5.30mm Width) |
| Supplier Device Package | 16-SO |
| Base Product Number | CD4572 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
