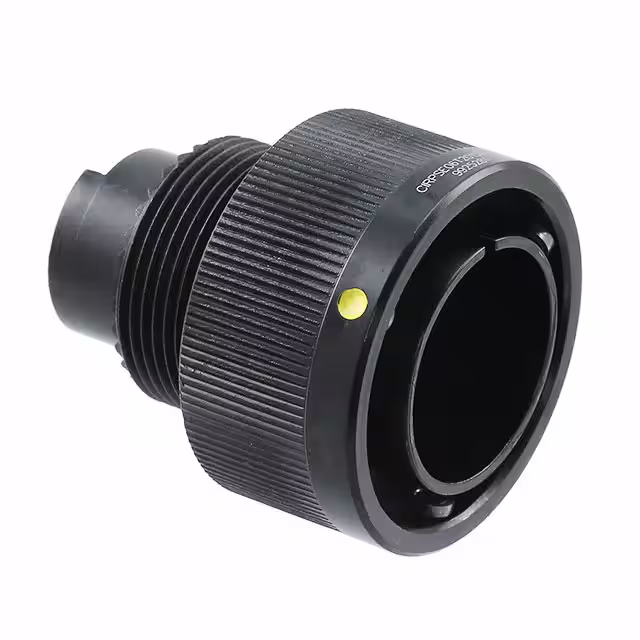

CIRPSE06T2015PV0N
CIRPSE06T2015PV0N
- Available: 0
- Manufacturer: TE Connectivity AMP Connectors
- Part Number: CIRPSE06T2015PV0N
- Detailed Description: 7 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
- Category: Connectors, Interconnects | Circular Connectors - Circular Connector Housings
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$46.2097
10+
$43.4371
100+
$41.1266
1000+
$38.8161
10000+
$36.5057
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | TE Connectivity AMP Connectors |
|---|---|
| Series | CIRP |
| Package | Bulk |
| Standard Package | 10 |
| Product Status | Active |
| Connector Type | Plug Housing |
| Type | For Male Pins |
| Number of Positions | 7 |
| Shell Size - Insert | 20-15 |
| Shell Size, MIL | - |
| Contact Type | Crimp |
| Contact Size | 12 |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Fastening Type | Reverse Bayonet Lock |
| Orientation | N (Normal) |
| Shell Material | Aluminum Alloy |
| Shell Finish | Chromate over Zinc Cobalt |
| Housing Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | Coupling Nut |
| Shielding | Shielded |
| Note | Contacts Not Included |
| Includes | - |
| Insert Material | Thermoplastic |
| Contact Shape | Circular |
| Operating Temperature | -45°C ~ 125°C |
| Base Product Number | CIRPSE06 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8538.90.8180 |
