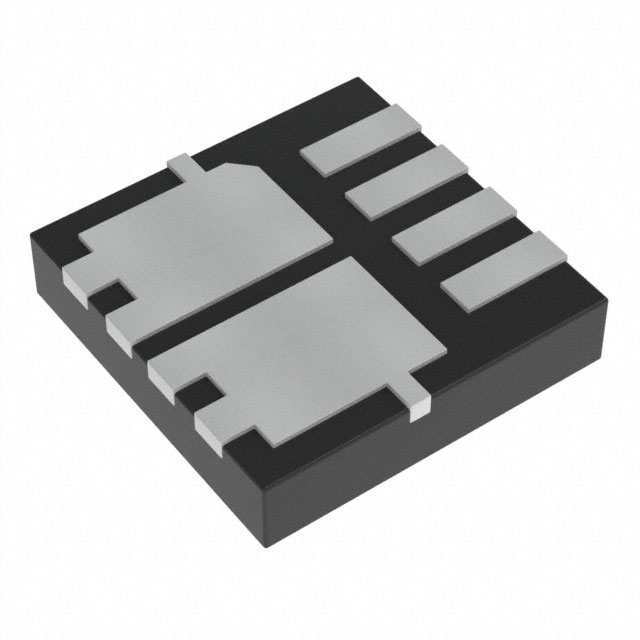

CSD87313DMST
CSD87313DMST
- Available: 10000
- Manufacturer: Texas Instruments
- Part Number: CSD87313DMST
- Detailed Description: Mosfet Array 2 N-Channel (Dual) Common Drain 30V 2.7W Surface Mount 8-WSON (3.3x3.3)
- Category: Discrete Semiconductor Products | Transistors - FETs, MOSFETs - Arrays
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.9760
10+
$2.7974
100+
$2.6486
1000+
$2.4998
10000+
$2.3510
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | NexFET™ |
| Package | - |
| Standard Package | 250 |
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) Common Drain |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | - |
| Rds On (Max) @ Id, Vgs | - |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 28nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 4290pF @ 15V |
| Power - Max | 2.7W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-WSON (3.3x3.3) |
| Base Product Number | CSD87313 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
