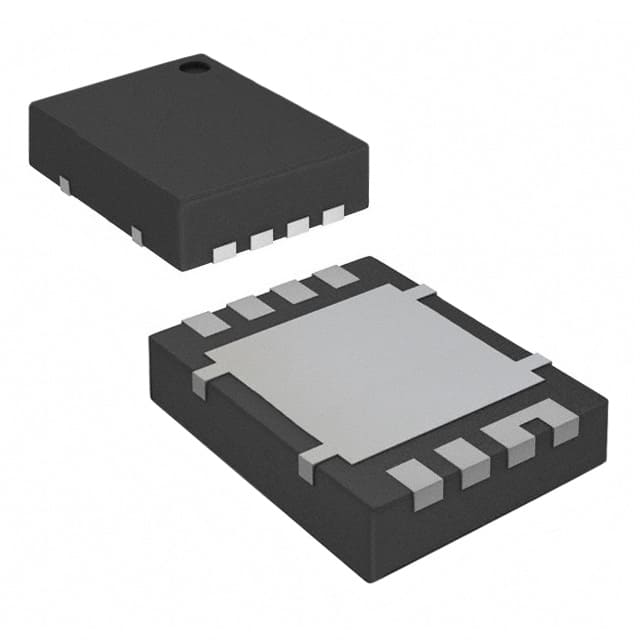

CSD87355Q5DT
CSD87355Q5DT
- Available: 750
- Manufacturer: Texas Instruments
- Part Number: CSD87355Q5DT
- Detailed Description: Mosfet Array 2 N-Channel (Dual) Asymmetrical 30V 45A 2.8W Surface Mount 8-LSON (5x6)
- Category: Discrete Semiconductor Products | Transistors - FETs, MOSFETs - Arrays
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.8400
10+
$3.6096
100+
$3.4176
1000+
$3.2256
10000+
$3.0336
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | NexFET™ |
| Package | - |
| Standard Package | 250 |
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Logic Level Gate | 5V Drive |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 45A |
| Rds On (Max) @ Id, Vgs | - |
| Vgs(th) (Max) @ Id | 1.9V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 13.7nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1860pF @ 15V |
| Power - Max | 2.8W |
| Operating Temperature | -55°C ~ 155°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerLDFN |
| Supplier Device Package | 8-LSON (5x6) |
| Base Product Number | CSD87355Q5 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
