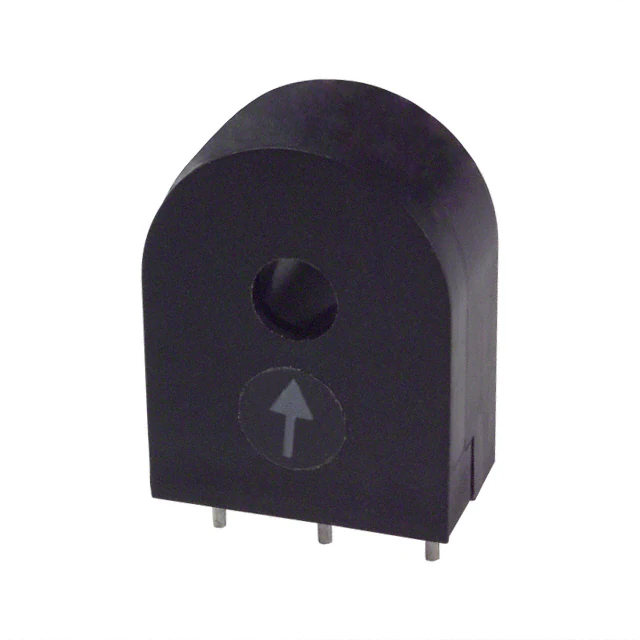

CST306-1T
CST306-1T
- Available: 3
- Manufacturer: Triad Magnetics
- Part Number: CST306-1T
- Detailed Description: 35 A Current Sense Transformer 20kHz ~ 200kHz 340mOhm Max 3.5 mH Through Hole
- Category: Transformers | Current Sense Transformers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$7.3320
10+
$6.8921
100+
$6.5255
1000+
$6.1589
10000+
$5.7923
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Triad Magnetics |
|---|---|
| Series | CST |
| Package | Bulk |
| Standard Package | 1 |
| Product Status | Active |
| Frequency Range | 20kHz ~ 200kHz |
| Type | Non-Invasive (Solid Core) |
| Current Rating (Amps) | 35 A |
| Inductance | 3.5 mH |
| ET (Volt-Time) | 500VµS |
| Turns Ratio - Primary:Secondary | - |
| Current Ratio | 50CT:1 |
| DC Resistance (DCR) | 340mOhm Max |
| Ratings | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.690" L x 0.385" W (17.53mm x 9.78mm) |
| Height - Seated (Max) | 0.915" (23.24mm) |
| Termination Style | PC Pin |
| Weight | - |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4035 |
