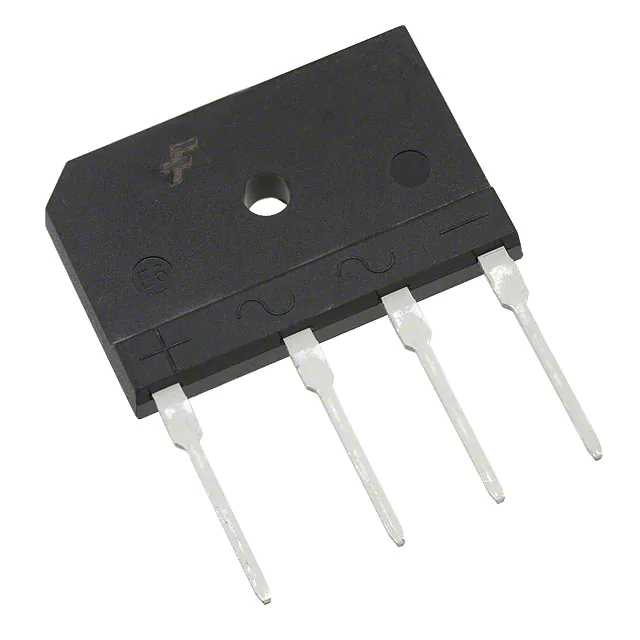

DFB2080
DFB2080
- Available: 45
- Manufacturer: onsemi
- Part Number: DFB2080
- Detailed Description: Bridge Rectifier Single Phase Standard 800 V Through Hole TS-6P
- Category: Discrete Semiconductor Products | Diodes - Bridge Rectifiers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.5280
10+
$3.3163
100+
$3.1399
1000+
$2.9635
10000+
$2.7871
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| Series | - |
| Package | Tube |
| Standard Package | 15 |
| Product Status | Active |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 20 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 20 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 800 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, TS-6P |
| Supplier Device Package | TS-6P |
| Base Product Number | DFB20 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
