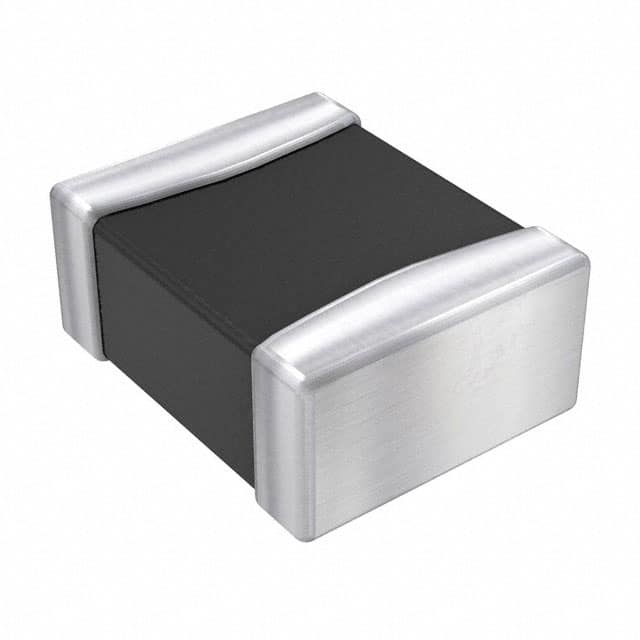

DFE201612PD-R47M=P2
DFE201612PD-R47M=P2
- Available: 593
- Manufacturer: Murata Electronics
- Part Number: DFE201612PD-R47M=P2
- Detailed Description: 470 nH Shielded Drum Core, Wirewound Inductor 3.2 A 32mOhm Max 0806 (2016 Metric)
- Category: Inductors, Coils, Chokes | Fixed Inductors
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.6480
10+
$0.6091
100+
$0.5767
1000+
$0.5443
10000+
$0.5119
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Murata Electronics |
|---|---|
| Series | DFE201612P |
| Package | - |
| Standard Package | 3000 |
| Product Status | Active |
| Type | Drum Core | Wirewound |
| Material - Core | Metal |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.2 A |
| Current - Saturation (Isat) | 3.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 32mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | DFE201612PD |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
