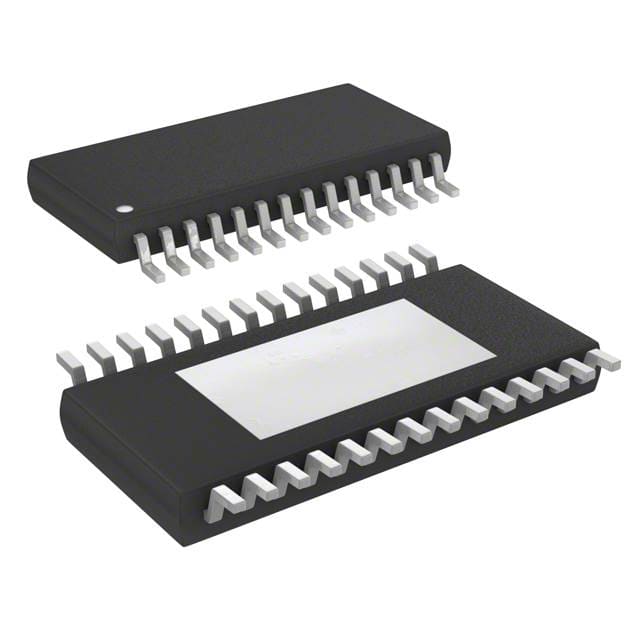

DRV8425EPWPR
DRV8425EPWPR
- Available: 3000
- Manufacturer: Texas Instruments
- Part Number: DRV8425EPWPR
- Detailed Description: Bipolar Motor Driver NMOS PWM 28-HTSSOP
- Category: Integrated Circuits (ICs) | PMIC - Motor Drivers, Controllers
- RoHS Status： ROHS3 Compliant
Reference Price (USD)
1+
$5.1000
10+
$4.7940
100+
$4.5390
1000+
$4.2840
10000+
$4.0290
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 2500 |
| Product Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated | Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | PWM |
| Technology | NMOS |
| Step Resolution | - |
| Applications | Printer |
| Current - Output | 2A |
| Voltage - Supply | 0V ~ 5.5V |
| Voltage - Load | 4.5V ~ 33V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173" | 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-HTSSOP |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
