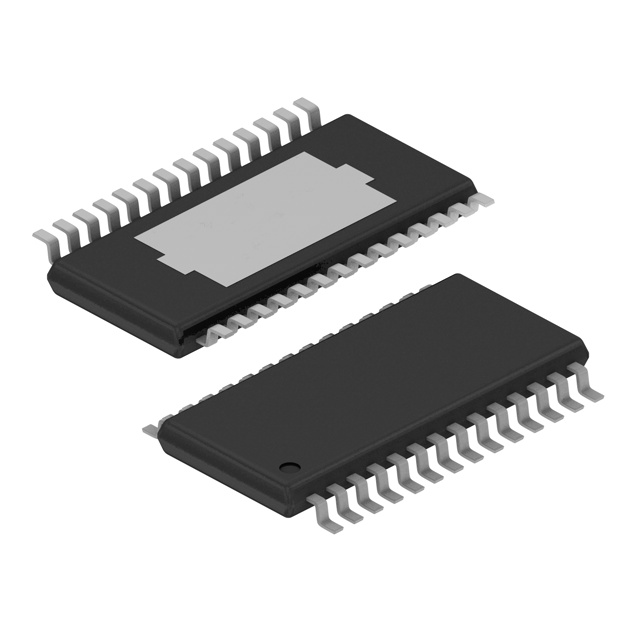

DRV8955PPWPR
DRV8955PPWPR
- Available: 7500
- Manufacturer: Texas Instruments
- Part Number: DRV8955PPWPR
- Detailed Description: Half Bridge (4) Driver DC Motors, Solenoids, Stepper Motors NMOS, Power MOSFET 28-HTSSOP
- Category: Integrated Circuits (ICs) | PMIC - Full Half-Bridge Drivers
- RoHS Status： ROHS3 Compliant
Reference Price (USD)
1+
$2.6784
10+
$2.5177
100+
$2.3838
1000+
$2.2499
10000+
$2.1159
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 2500 |
| Product Status | Active |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors | Solenoids | Stepper Motors |
| Interface | Analog | Logic | PWM |
| Load Type | Inductive | Capacitive | Resistive |
| Technology | NMOS | Power MOSFET |
| Rds On (Typ) | 165mOhm |
| Current - Output / Channel | 10A |
| Current - Peak Output | 10A |
| Voltage - Supply | 4.5V ~ 48V |
| Voltage - Load | 4.5V ~ 48V |
| Operating Temperature | -40°C ~ 125°C |
| Features | Charge Pump |
| Fault Protection | Over Current | Over Voltage | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 28-PowerTSSOP (0.173" | 4.40mm Width) |
| Supplier Device Package | 28-HTSSOP |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
