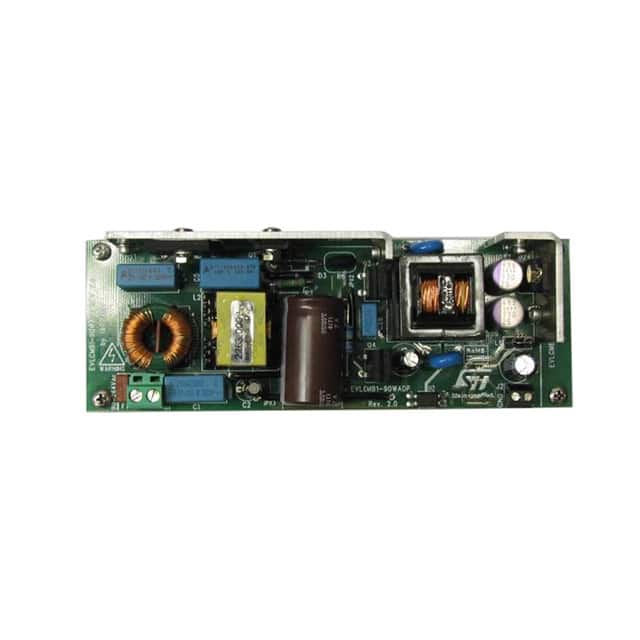

EVLCMB1-90WADP
EVLCMB1-90WADP
- Available: 1
- Manufacturer: STMicroelectronics
- Part Number: EVLCMB1-90WADP
- Detailed Description: STCMB1 - AC/DC, Primary and Secondary Side with PFC 1, Non-Isolated Outputs Evaluation Board
- Category: Development Boards, Kits, Programmers | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$274.5240
10+
$258.0526
100+
$244.3264
1000+
$230.6002
10000+
$216.8740
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 1 |
| Product Status | Active |
| Main Purpose | AC/DC | Primary and Secondary Side with PFC |
| Outputs and Type | 1 | Non-Isolated |
| Power - Output | 90 W |
| Voltage - Output | 19V |
| Current - Output | 4.75A |
| Voltage - Input | 90 ~ 264 VAC |
| Regulator Topology | Resonant |
| Frequency - Switching | 500kHz |
| Board Type | Fully Populated |
| Supplied Contents | Board(s) |
| Utilized IC / Part | STCMB1 |
| Base Product Number | EVLCMB1 |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9520 |
