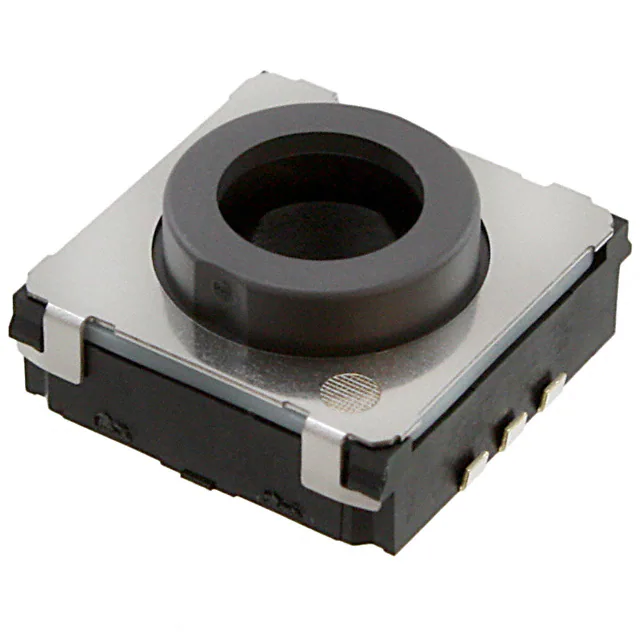

EVP-ADK04K
EVP-ADK04K
- Available: 3000
- Manufacturer: Panasonic Electronic Components
- Part Number: EVP-ADK04K
- Detailed Description: Tactile Switch SPST-NO Top Actuated Surface Mount
- Category: Switches | Tactile Switches
- RoHS Status： RoHS Compliant
Reference Price (USD)
1+
$1.8480
10+
$1.7371
100+
$1.6447
1000+
$1.5523
10000+
$1.4599
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Panasonic Electronic Components |
|---|---|
| Series | EVPAD |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 1000 |
| Product Status | Active |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Open Center |
| Mounting Type | Surface Mount |
| Actuator Height off PCB, Vertical | 4.70mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | J Lead |
| Outline | 10.00mm x 10.00mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 400gf |
| Ingress Protection | - |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Actuator Material | - |
| Switch Travel | 1.00mm |
| Mechanical Life | 100,000 Cycles |
| Base Product Number | EVP-AD |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.50.9031 |
