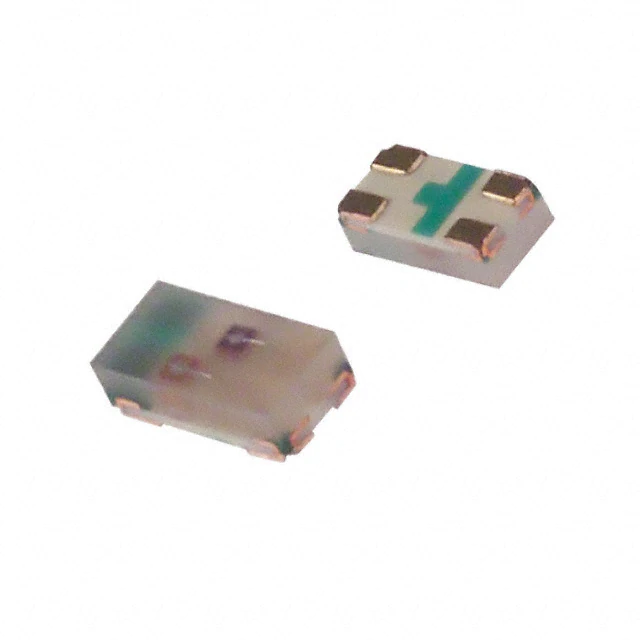

HSMF-C169
HSMF-C169
- Available: 8000
- Manufacturer: Broadcom Limited
- Part Number: HSMF-C169
- Detailed Description: Amber, Blue 592nm Amber, 470nm Blue LED Indication - Discrete 1.9V Amber, 3.4V Blue 0603 (1608 Metric)
- Category: Optoelectronics | LED Indication - Discrete
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.1480
10+
$2.0191
100+
$1.9117
1000+
$1.8043
10000+
$1.6969
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Broadcom Limited |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 4000 |
| Product Status | Active |
| Color | Amber, Blue |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 90mcd Amber, 10mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Amber, 3.4V Blue |
| Current - Test | 20mA Amber, 10mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 592nm Amber, 470nm Blue |
| Wavelength - Peak | 595nm Amber, 468nm Blue |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.50mm |
| Base Product Number | HSMF-C169 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.41.0000 |
