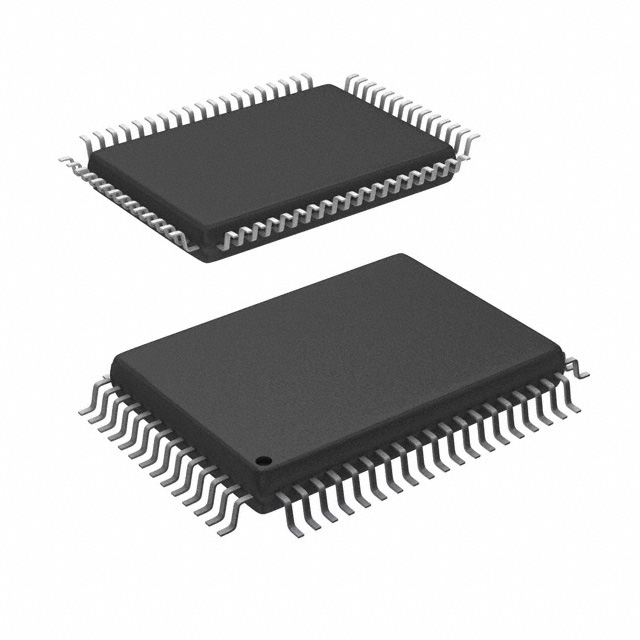

IR2238QPBF
IR2238QPBF
- Available: 198
- Manufacturer: Infineon Technologies
- Part Number: IR2238QPBF
- Detailed Description: Motor Driver IGBT Parallel 64-MQFP (20x14)
- Category: Integrated Circuits (ICs) | PMIC - Motor Drivers, Controllers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$29.5080
10+
$27.7375
100+
$26.2621
1000+
$24.7867
10000+
$23.3113
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Infineon Technologies |
|---|---|
| Series | - |
| Package | Tray |
| Standard Package | 66 |
| Product Status | Active |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | AC | Synchronous |
| Function | Controller - Commutation | Direction Management |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Interface | Parallel |
| Technology | IGBT |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | - |
| Voltage - Supply | 12.5V ~ 20V |
| Voltage - Load | - |
| Operating Temperature | -20°C ~ 115°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-BQFP |
| Supplier Device Package | 64-MQFP (20x14) |
| Base Product Number | IR2238 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
