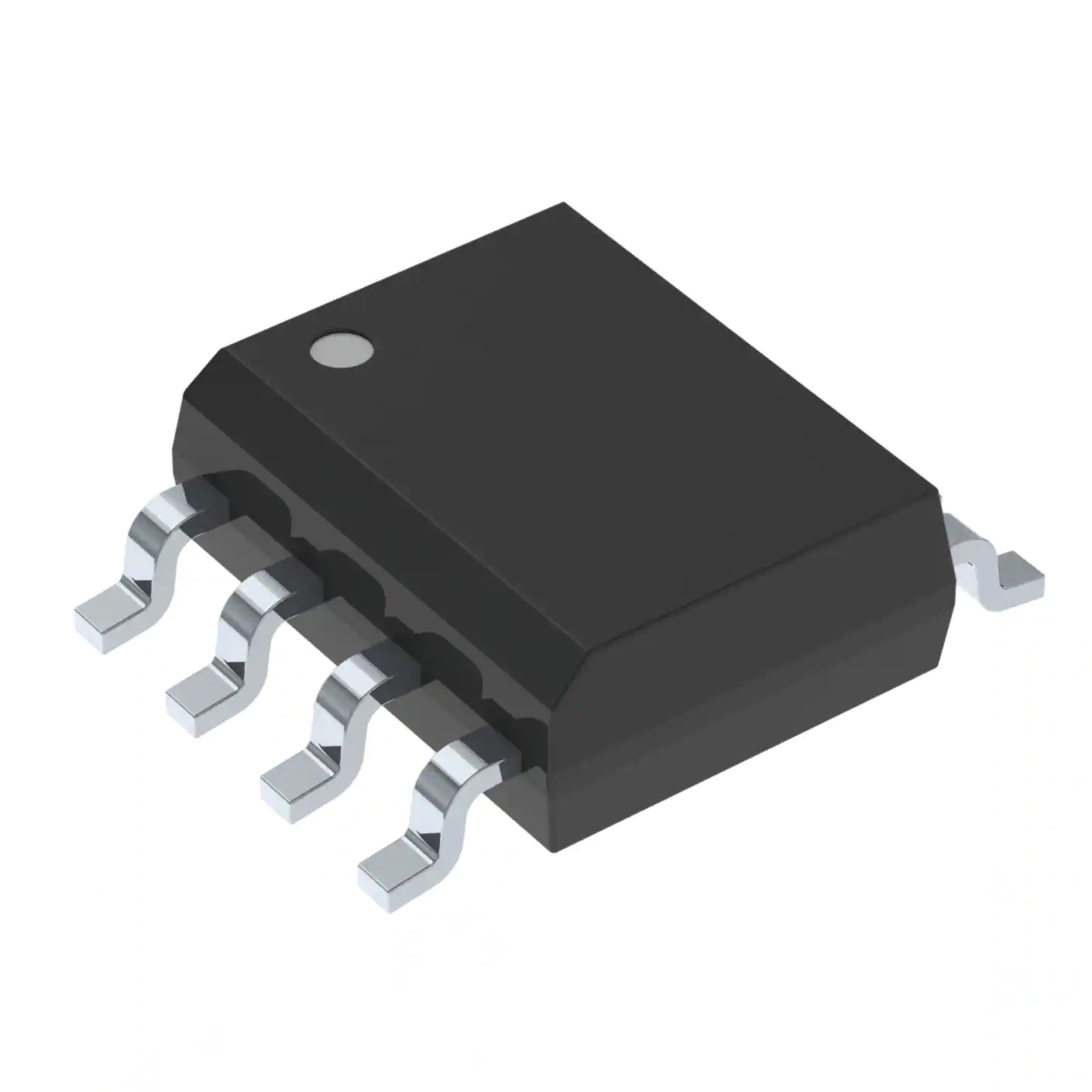

IRF9956TRPBF
IRF9956TRPBF
- Available: 12000
- Manufacturer: Infineon Technologies
- Part Number: IRF9956TRPBF
- Detailed Description: Mosfet Array 2 N-Channel (Dual) 30V 3.5A 2W Surface Mount 8-SO
- Category: Discrete Semiconductor Products | Transistors - FETs, MOSFETs - Arrays
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.1160
10+
$1.0490
100+
$0.9932
1000+
$0.9374
10000+
$0.8816
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Infineon Technologies |
|---|---|
| Series | HEXFET® |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 4000 |
| Product Status | Not For New Designs |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 2.2A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 14nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 190pF @ 15V |
| Power - Max | 2W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | IRF9956 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
