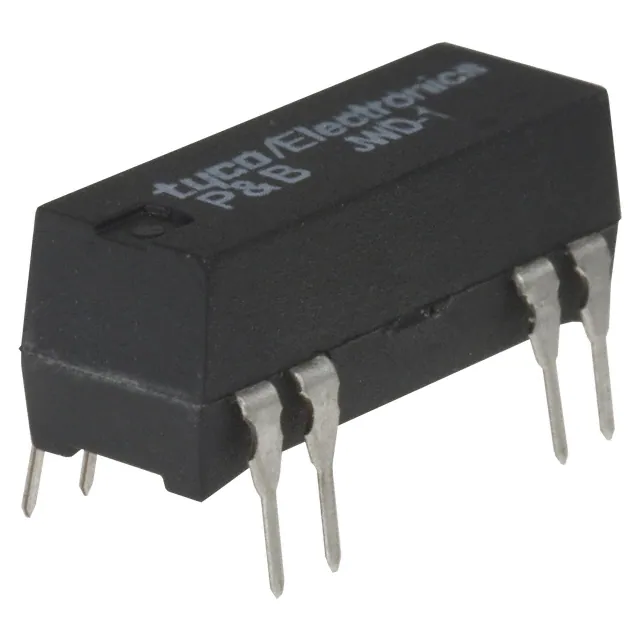

JWD-172-3
JWD-172-3
- Available: 41
- Manufacturer: TE Connectivity Potter & Brumfield Relays
- Part Number: JWD-172-3
- Detailed Description: RELAY REED SPDT 500MA 12V
- Category: Relays | Reed Relays
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$17.8230
10+
$16.7536
100+
$15.8625
1000+
$14.9713
10000+
$14.0802
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
|---|---|
| Series | JWD |
| Package | Tube |
| Standard Package | 4000 |
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 500 mA |
| Switching Voltage | 28VDC - Max |
| Coil Current | 24 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 1.5 ms |
| Release Time | 3 ms |
| Operating Temperature | -35°C ~ 85°C |
| Contact Material | Ruthenium (Ru) |
| Coil Resistance | 500 Ohms |
| Base Product Number | JWD |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.41.0030 |
