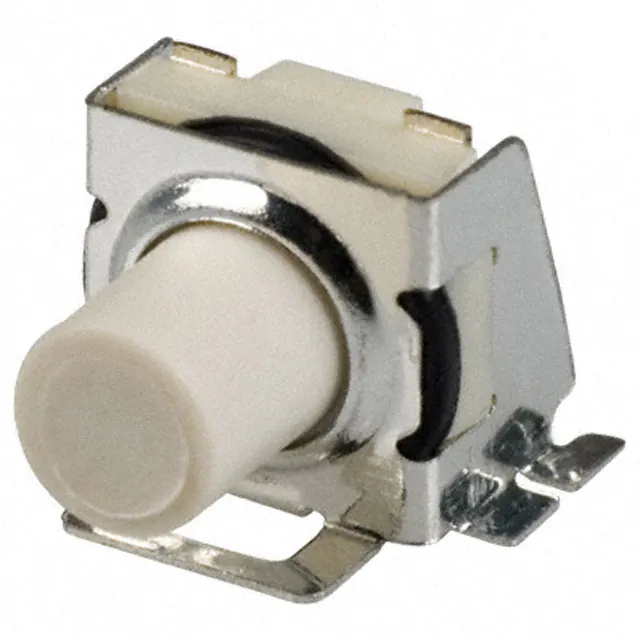

KT11P4SA1M35LFG
KT11P4SA1M35LFG
- Available: 2400
- Manufacturer: C&K
- Part Number: KT11P4SA1M35LFG
- Detailed Description: Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
- Category: Switches | Tactile Switches
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.9120
10+
$3.6773
100+
$3.4817
1000+
$3.2861
10000+
$3.0905
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | C&K |
|---|---|
| Series | KT |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 800 |
| Product Status | Active |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 1VA @ 32VAC/DC |
| Actuator Type | Standard |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Height off PCB, Vertical | - |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Side Actuated |
| Termination Style | Gull Wing |
| Outline | 7.77mm x 4.38mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 300gf |
| Ingress Protection | IP57 - Dust Protected, Waterproof |
| Features | Sealed |
| Operating Temperature | -40°C ~ 90°C |
| Actuator Material | Polyamide (PA), Nylon |
| Switch Travel | - |
| Mechanical Life | 100, 000 Cycles |
| Base Product Number | KT11P4 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.50.9031 |
