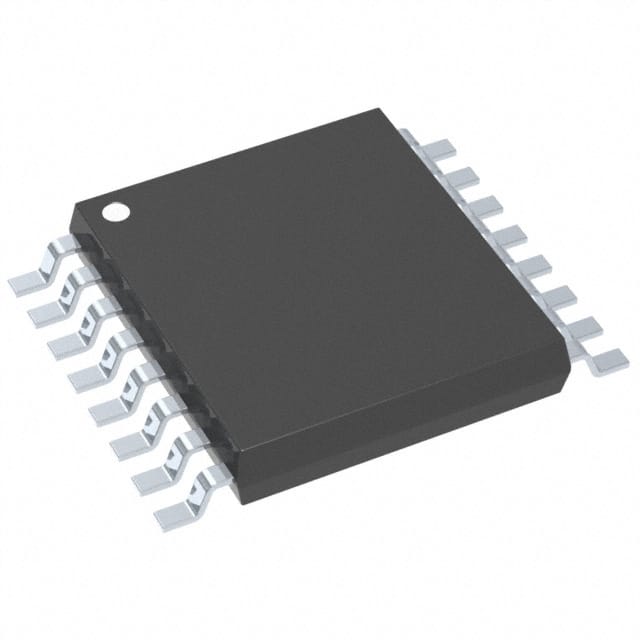

LED8102SXTTR
LED8102SXTTR
- Available: 2000
- Manufacturer: STMicroelectronics
- Part Number: LED8102SXTTR
- Detailed Description: LED Driver IC 8 Output Linear PWM Dimming 100mA 16-HTSSOP
- Category: Integrated Circuits (ICs) | PMIC - LED Drivers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.9080
10+
$1.7935
100+
$1.6981
1000+
$1.6027
10000+
$1.5073
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 2500 |
| Product Status | Active |
| Type | Linear |
| Topology | - |
| Internal Switch(s) | Yes |
| Number of Outputs | 8 |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 0.85V ~ 19V |
| Current - Output / Channel | 100mA |
| Frequency | - |
| Dimming | PWM |
| Applications | Backlight, Lighting |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-HTSSOP |
| Base Product Number | LED8102 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
