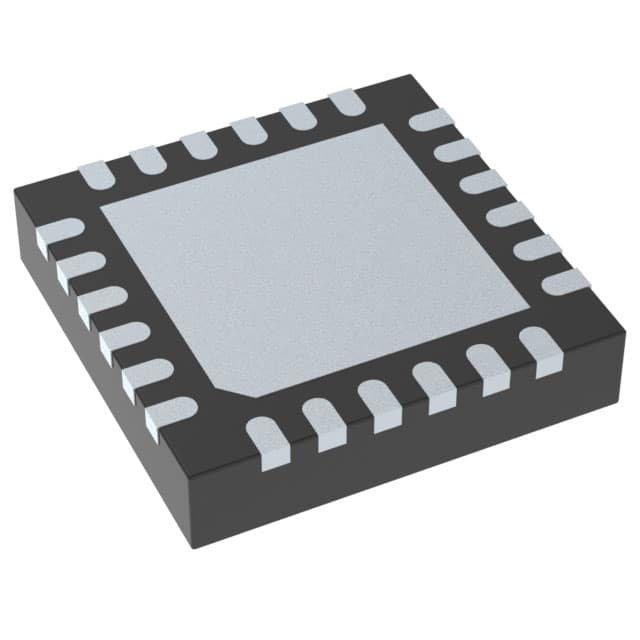

LM2754SQ/NOPB
LM2754SQ/NOPB
- Available: 2000
- Manufacturer: Texas Instruments
- Part Number: LM2754SQ/NOPB
- Detailed Description: LED Driver IC 4 Output DC DC Regulator Switched Capacitor (Charge Pump) Dimming 200mA (Flash) 24-WQFN (4x4)
- Category: Integrated Circuits (ICs) | PMIC - LED Drivers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.4720
10+
$2.3237
100+
$2.2001
1000+
$2.0765
10000+
$1.9529
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 1000 |
| Product Status | Active |
| Type | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes |
| Number of Outputs | 4 |
| Voltage - Supply (Min) | 2.8V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 4.7V ~ 5.1V |
| Current - Output / Channel | 200mA (Flash) |
| Frequency | 1MHz |
| Dimming | - |
| Applications | Camera Flash |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-WQFN (4x4) |
| Base Product Number | LM2754 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
