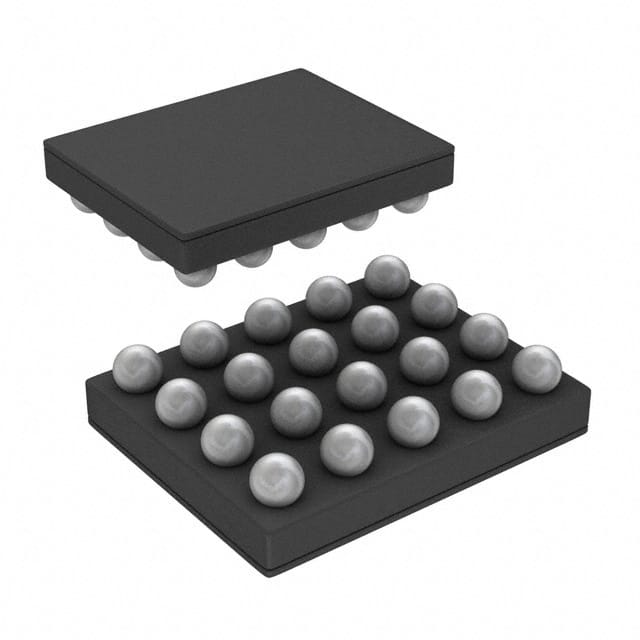

LM3633YFQR
LM3633YFQR
- Available: 3000
- Manufacturer: Texas Instruments
- Part Number: LM3633YFQR
- Detailed Description: LED Driver IC 6 Output DC DC Regulator Step-Up (Boost), Switched Capacitor (Charge Pump) PWM Dimming 30mA 20-DSBGA (2.04x1.78)
- Category: Integrated Circuits (ICs) | PMIC - LED Drivers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.1646
10+
$1.0947
100+
$1.0365
1000+
$0.9783
10000+
$0.9200
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 3000 |
| Product Status | Active |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes |
| Number of Outputs | 6 |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 40V |
| Current - Output / Channel | 30mA |
| Frequency | 500kHz | 1MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFBGA | DSBGA |
| Supplier Device Package | 20-DSBGA (2.04x1.78) |
| Base Product Number | LM3633 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
