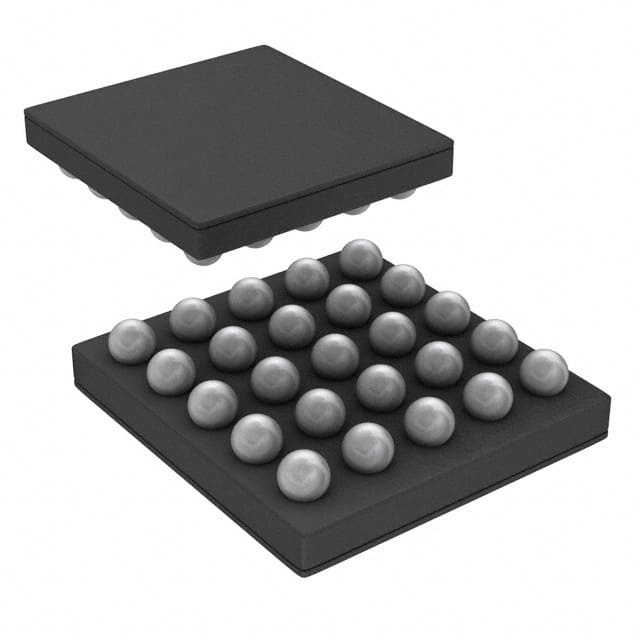

LP5520TLX/NOPB
LP5520TLX/NOPB
- Available: 3000
- Manufacturer: Texas Instruments
- Part Number: LP5520TLX/NOPB
- Detailed Description: LED Driver IC 3 Output DC DC Regulator Step-Up (Boost) PWM Dimming 60mA 25-uSMD
- Category: Integrated Circuits (ICs) | PMIC - LED Drivers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.8746
10+
$2.7021
100+
$2.5584
1000+
$2.4147
10000+
$2.2709
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 3000 |
| Product Status | Active |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 3 |
| Voltage - Supply (Min) | 2.9V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 5V ~ 20V |
| Current - Output / Channel | 60mA |
| Frequency | 1.22kHz | 19.52kHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 25-WFBGA |
| Supplier Device Package | 25-uSMD |
| Base Product Number | LP5520 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
