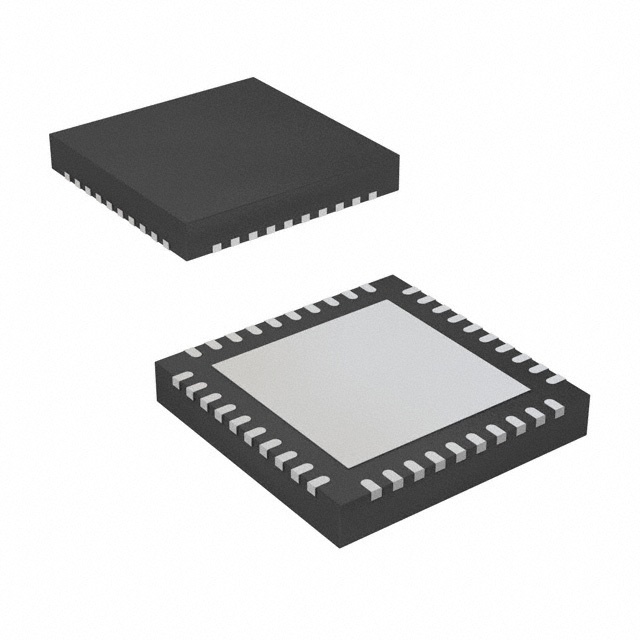

LP5860RKPR
LP5860RKPR
- Available: 9000
- Manufacturer: Texas Instruments
- Part Number: LP5860RKPR
- Detailed Description: LED Driver IC 18 Output Linear Constant Current Analog, PWM Dimming 50mA 40-VQFN (5x5)
- Category: Integrated Circuits (ICs) | PMIC - LED Drivers
- RoHS Status： ROHS3 Compliant
Reference Price (USD)
1+
$3.6000
10+
$3.3840
100+
$3.2040
1000+
$3.0240
10000+
$2.8440
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 3000 |
| Product Status | Active |
| Type | Linear |
| Topology | Constant Current |
| Internal Switch(s) | Yes |
| Number of Outputs | 18 |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | - |
| Current - Output / Channel | 50mA |
| Frequency | 32MHz |
| Dimming | Analog | PWM |
| Applications | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-VQFN (5x5) |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
