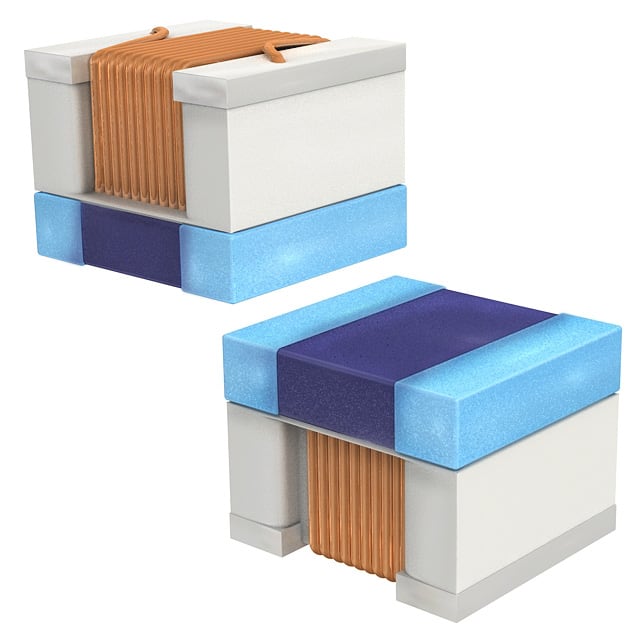

LQW2UAS56NG0CL
LQW2UAS56NG0CL
- Available: 6000
- Manufacturer: Murata Electronics
- Part Number: LQW2UAS56NG0CL
- Detailed Description: 56 nH Unshielded Wirewound Inductor 1 A 180mOhm Max 1008 (2520 Metric)
- Category: Inductors, Coils, Chokes | Fixed Inductors
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.3960
10+
$0.3722
100+
$0.3524
1000+
$0.3326
10000+
$0.3128
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Murata Electronics |
|---|---|
| Series | LQW2 |
| Package | - |
| Standard Package | 2000 |
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Non-Magnetic |
| Inductance | 56 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 180mOhm Max |
| Q @ Freq | 65 @ 350MHz |
| Frequency - Self Resonant | 1.3GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 50 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 |
| Size / Dimension | 0.103" L x 0.096" W (2.62mm x 2.45mm) |
| Height - Seated (Max) | 0.080" (2.03mm) |
| Base Product Number | LQW2UAS |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
