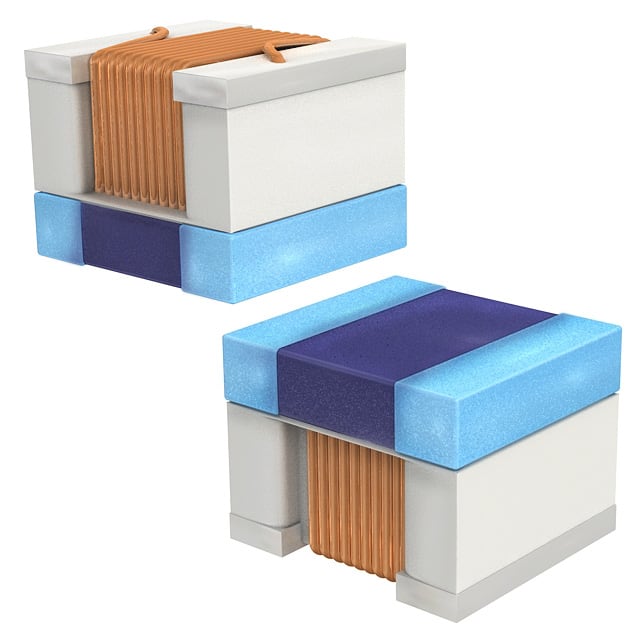

LQW2UASR68F00L
LQW2UASR68F00L
- Available: 671
- Manufacturer: Murata Electronics
- Part Number: LQW2UASR68F00L
- Detailed Description: 680 nH Unshielded Wirewound Inductor 400 mA 1.47Ohm Max 1008 (2520 Metric)
- Category: Inductors, Coils, Chokes | Fixed Inductors
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.6120
10+
$0.5753
100+
$0.5447
1000+
$0.5141
10000+
$0.4835
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Murata Electronics |
|---|---|
| Series | LQW2 |
| Package | - |
| Standard Package | 2000 |
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Non-Magnetic |
| Inductance | 680 nH |
| Tolerance | ±1% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.47Ohm Max |
| Q @ Freq | 45 @ 100MHz |
| Frequency - Self Resonant | 375MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.103" L x 0.096" W (2.62mm x 2.45mm) |
| Height - Seated (Max) | 0.080" (2.03mm) |
| Base Product Number | LQW2UAS |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
