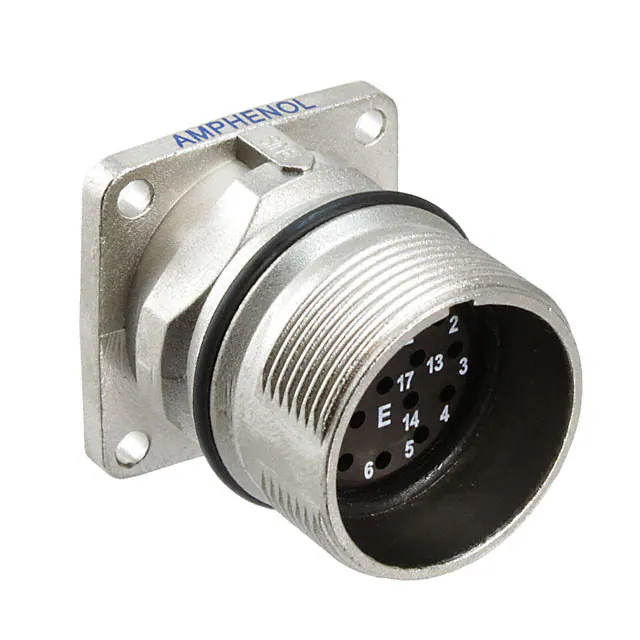

MA1LAE1700
MA1LAE1700
- Available: 0
- Manufacturer: Amphenol Sine Systems Corp
- Part Number: MA1LAE1700
- Detailed Description: 17 Position Circular Connector Receptacle Housing Panel Mount
- Category: Connectors, Interconnects | Circular Connectors - Circular Connector Housings
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$13.4400
10+
$12.6336
100+
$11.9616
1000+
$11.2896
10000+
$10.6176
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Amphenol Sine Systems Corp |
|---|---|
| Series | MotionGrade™ M23 Signal Standard Series, Threaded |
| Package | Bulk |
| Standard Package | 400 |
| Product Status | Active |
| Connector Type | Receptacle Housing |
| Type | For Female Sockets or Male Pins |
| Number of Positions | 17 |
| Shell Size - Insert | M23-17 |
| Shell Size, MIL | - |
| Contact Type | Crimp |
| Contact Size | 1.0mm |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Fastening Type | Threaded |
| Orientation | E |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | - |
| Shielding | Shielded |
| Note | Contacts Not Included |
| Includes | - |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Contact Shape | Circular |
| Operating Temperature | -20°C ~ 130°C |
| Base Product Number | MA1LAE |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8538.90.8180 |
