MX23A12NF1
MX23A12NF1
- Available: 600
- Manufacturer: JAE Electronics
- Part Number: MX23A12NF1

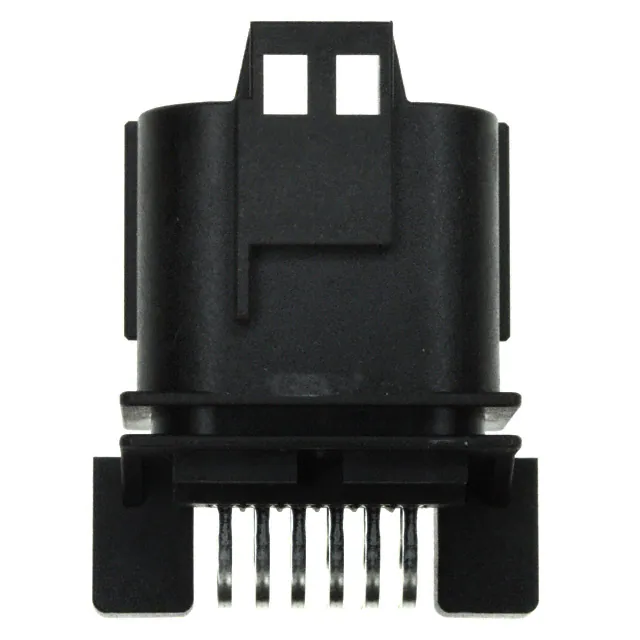

- Detailed Description: Connector Header Through Hole, Right Angle 12 position 0.098" (2.50mm)
- Category: Connectors, Interconnects | Rectangular Connectors - Headers, Male Pins
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$7.8240
10+
$7.3546
100+
$6.9634
1000+
$6.5722
10000+
$6.1810
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | JAE Electronics |
|---|---|
| Series | MX23A |
| Package | Tray |
| Standard Package | 200 |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.173" (4.40mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.122" (3.10mm) |
| Overall Contact Length | - |
| Insulation Height | 0.720" (18.30mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | Waterproof |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | Automotive |
| Base Product Number | MX23A12N |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
