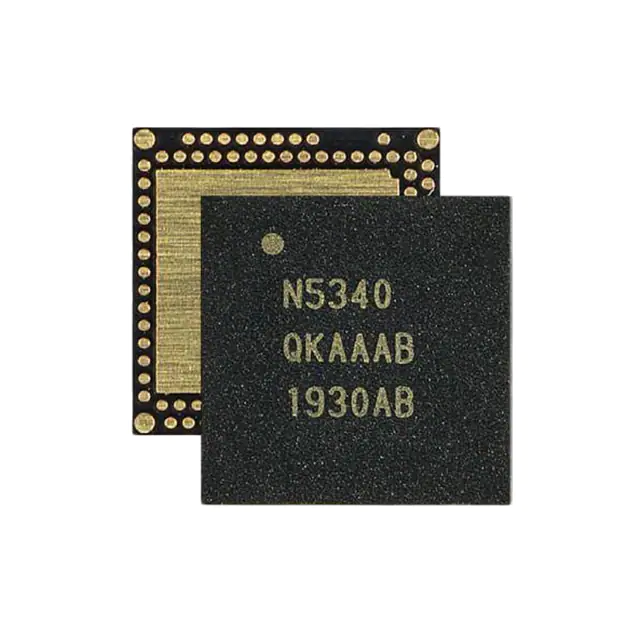

NRF5340-QKAA-R
NRF5340-QKAA-R
- Available: 30000
- Manufacturer: Nordic Semiconductor ASA
- Part Number: NRF5340-QKAA-R
- Detailed Description: IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.1, Thread, Zigbee® 2.4GHz 94-VFQFN Dual Rows, Exposed Pad
- Category: RF/IF and RFID | RF Transceiver ICs
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$12.4800
10+
$11.7312
100+
$11.1072
1000+
$10.4832
10000+
$9.8592
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Nordic Semiconductor ASA |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 3000 |
| Product Status | Active |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.1, Thread, Zigbee® |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 3dBm |
| Sensitivity | -97.5dBm |
| Memory Size | 1MB Flash, 256kB RAM |
| Serial Interfaces | ADC, I²S, PWM, SPI, UART, USB |
| GPIO | 48 |
| Voltage - Supply | 1.7V ~ 5.5V |
| Current - Receiving | 2.6mA ~ 7mA |
| Current - Transmitting | 3.2mA |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 94-VFQFN Dual Rows, Exposed Pad |
| Supplier Device Package | 94-aQFN (7x7) |
| Base Product Number | NRF5340 |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | |
| REACH Status | REACH Unaffected |
| ECCN | 5A992C |
| HTSUS | 8517.62.0090 |
