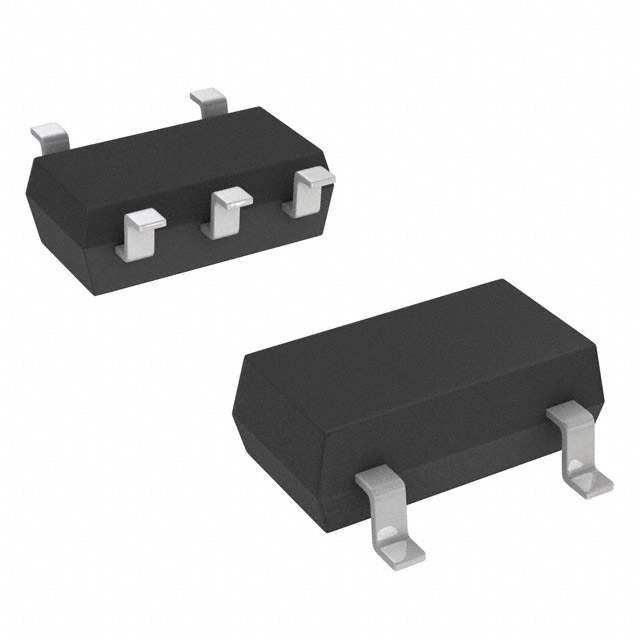

OA1NP22C
OA1NP22C
- Available: 6000
- Manufacturer: STMicroelectronics
- Part Number: OA1NP22C
- Detailed Description: CMOS Amplifier 1 Circuit Rail-to-Rail SC-70-5
- Category: Integrated Circuits (ICs) | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.3280
10+
$2.1883
100+
$2.0719
1000+
$1.9555
10000+
$1.8391
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | STMicroelectronics |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 3000 |
| Product Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.003V/µs |
| Gain Bandwidth Product | 9 kHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 650nA |
| Current - Output / Channel | 11 mA |
| Voltage - Supply Span (Min) | 1.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | OA1NP22 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
