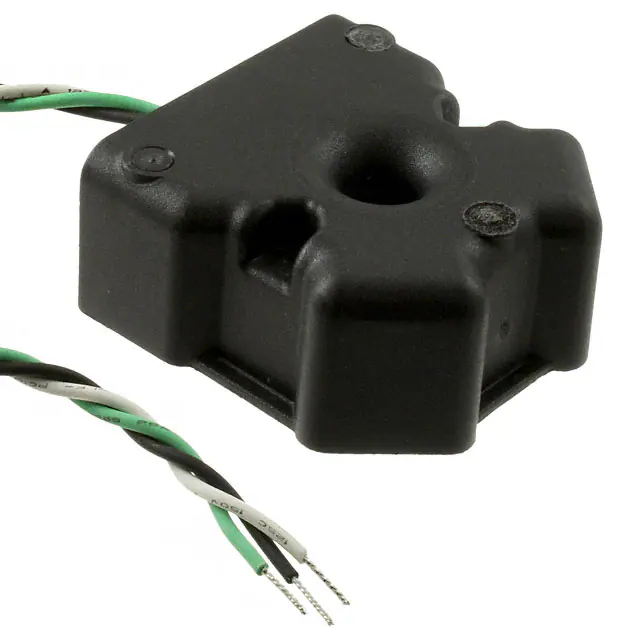

PA3208NL
PA3208NL
- Available: 106
- Manufacturer: Pulse Electronics
- Part Number: PA3208NL
- Detailed Description: 100 A Rogowski Coil Current Sense Transformer 50/60Hz 54Ohm Max 1.14 mH Chassis Mount
- Category: Transformers | Current Sense Transformers
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$8.1600
10+
$7.6704
100+
$7.2624
1000+
$6.8544
10000+
$6.4464
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Pulse Electronics |
|---|---|
| Series | Sidewinder®, PA32XXNL |
| Package | Tray |
| Standard Package | 20 |
| Product Status | Active |
| Frequency Range | 50/60Hz |
| Type | Non-Invasive (Solid Core) |
| Current Rating (Amps) | 100 A |
| Inductance | 1.14 mH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | Rogowski Coil |
| Current Ratio | - |
| DC Resistance (DCR) | 54Ohm Max |
| Ratings | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 1.205" L x 1.189" W (30.60mm x 30.20mm) |
| Height - Seated (Max) | 0.580" (14.73mm) |
| Termination Style | Wire Leads |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
