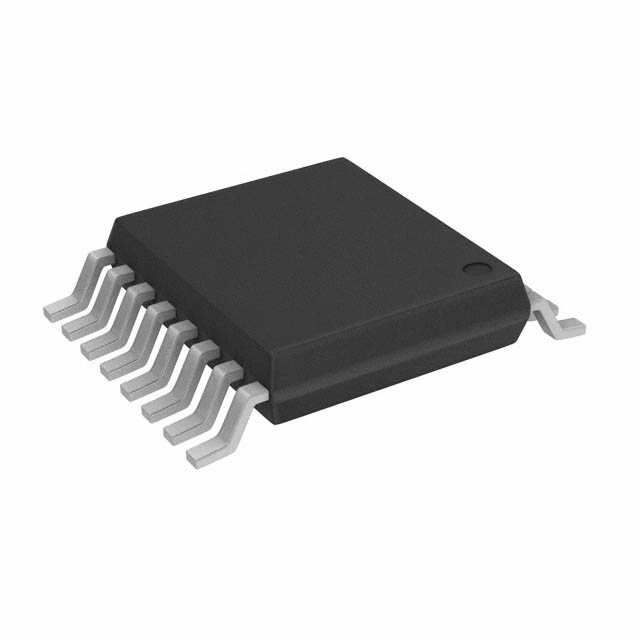

PCA9629APWJ
PCA9629APWJ
- Available: 2500
- Manufacturer: NXP USA Inc.
- Part Number: PCA9629APWJ
- Detailed Description: Bipolar, Unipolar Motor Driver CMOS I²C 16-TSSOP
- Category: Integrated Circuits (ICs) | PMIC - Motor Drivers, Controllers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.6120
10+
$3.3953
100+
$3.2147
1000+
$3.0341
10000+
$2.8535
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | NXP USA Inc. |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 2500 |
| Product Status | Active |
| Motor Type - Stepper | Bipolar, Unipolar |
| Motor Type - AC, DC | - |
| Function | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - Half Bridge (4) |
| Interface | I²C |
| Technology | CMOS |
| Step Resolution | 1 ~ 1/128 |
| Applications | General Purpose |
| Current - Output | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173, 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | PCA9629 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
