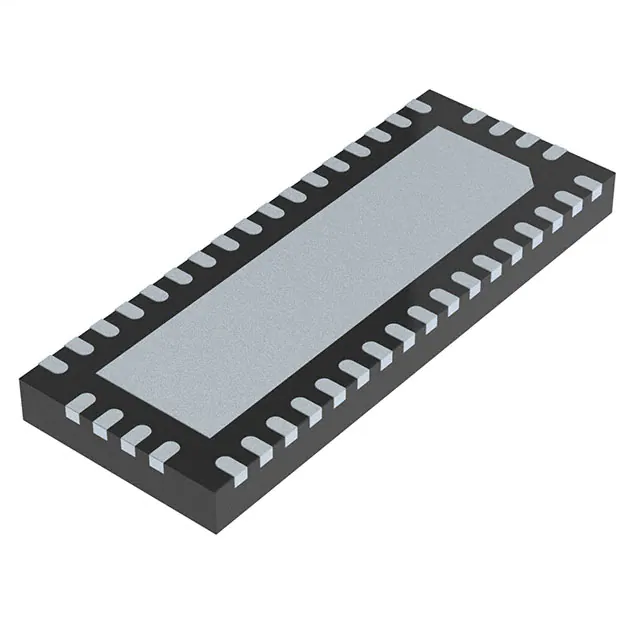

PI3PCIE3413AZHEX
PI3PCIE3413AZHEX
- Available: 7000
- Manufacturer: Diodes Incorporated
- Part Number: PI3PCIE3413AZHEX
- Detailed Description: PCI Express® Switch IC 4 Channel 42-TQFN (9x3.5)
- Category: Integrated Circuits (ICs) | Interface - Analog Switches - Special Purpose
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$6.7440
10+
$6.3394
100+
$6.0022
1000+
$5.6650
10000+
$5.3278
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Diodes Incorporated |
|---|---|
| Series | PCI Express® (PCIe) |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 3500 |
| Product Status | Active |
| Applications | PCI Express® |
| Multiplexer/Demultiplexer Circuit | 3:1 |
| Switch Circuit | - |
| Number of Channels | 4 |
| On-State Resistance (Max) | - |
| Voltage - Supply, Single (V+) | 3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| -3db Bandwidth | 6.8GHz |
| Features | Bi-Directional |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 42-VFQFN Exposed Pad |
| Supplier Device Package | 42-TQFN (9x3.5) |
| Base Product Number | PI3PCIE3413 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
How to Buy
| Process | Submit enquiry>Confirm offer>Send order>Complete payment >Delivery |
|---|---|
| Payment | TT, PayPal, Escrow, more please consult our account manager. |
| Delivery period | For in-stock parts, orders are estimated to ship out in 3 days. |
| Shipping option | We provide DHL, FedEx, UPS for international transportation. |
| Shipping tracking | Orders are shipped and we will notify you of the tracking number by email. |
| Warranty | Cytech Systems provide 6 months quality risk guarantee. If you find that the quality of the product does not match the original technical parameters during the use of the product, we will assume responsibility for the quality risk within 6 months. This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation |
