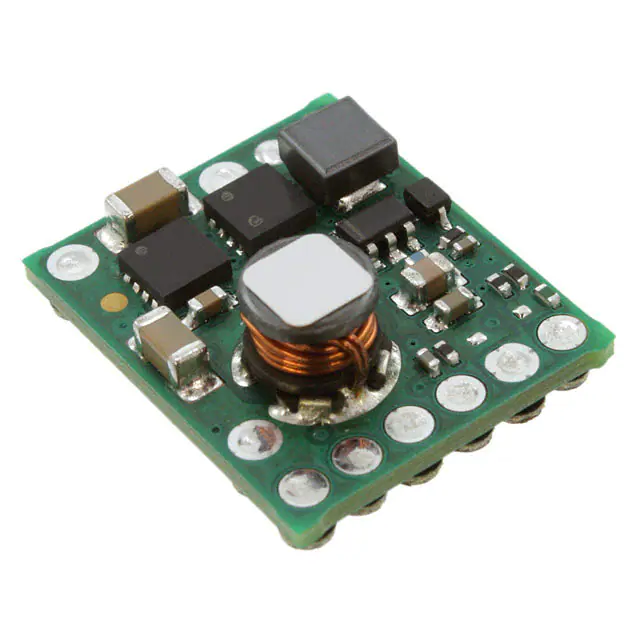

PTH04T230WAS
PTH04T230WAS
- Available: 2000
- Manufacturer: Texas Instruments
- Part Number: PTH04T230WAS
- Detailed Description: Non-Isolated PoL Module DC DC Converter 1 Output 0.69 ~ 3.6V - - 6A 2.2V - 5.5V Input
- Category: Power Supplies - Board Mount | DC DC Converters Board Mount
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$16.7760
10+
$15.7694
100+
$14.9306
1000+
$14.0918
10000+
$13.2530
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Series | PTH04T230W |
| Package | Tray |
| Standard Package | 36 |
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.2V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.69 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 6A |
| Applications | ITE (Commercial) |
| Features | Remote On/Off | OCP | OTP | UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 94% |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module |
| Size / Dimension | 0.74" L x 0.62" W x 0.36" H (18.9mm x 15.8mm x 9.1mm) |
| Base Product Number | PTH04 |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
